Features:
*High-Frequency Performance: This atomizing device operates with high-frequency oscillation and features a micrometer aperture, resulting in a large amount of atomization with fine mist particles and a high spray rate.
*Great Usage Conditions: The atomizing piece should be used in conjunction with a circuit board that matches its frequency to achieve optimal spray output, efficient performance.
*Power Activation: By welding the left and right points of the switch together, users can enable power without needing to control the switch manually, allowing for continuous spraying.
*Wiring Specifications: The device includes two wires, with the red wire representing positive and the black wire representing negative. Each wire is 80mm long and terminates with terminal blocks for easy connections.
*Good and Protective Features: Waterproof is applied to the solder points of the wires to prevent circuit interruptions. Additionally, the atomizing sheet is treated with a silver oxide layer.
Specifications:
Part Name: Humidifier Module
Material: Plastic,Metal
Size: Standard
Color: Green
PCB board size: 35mm*19mm/.38*0.75inch
Voltage: 5V Current: 300mA
Frequency: 110KHz Power: 2W
Aperture: 5um
Holes: 740
Wire length: 80mm/3.15inch
Atomized steel sheet diameter: 16mm/0.63inch
Rubber ring diameter: 20mm/0.79inch
Rubber ring thickness: 4mm/0.16inch

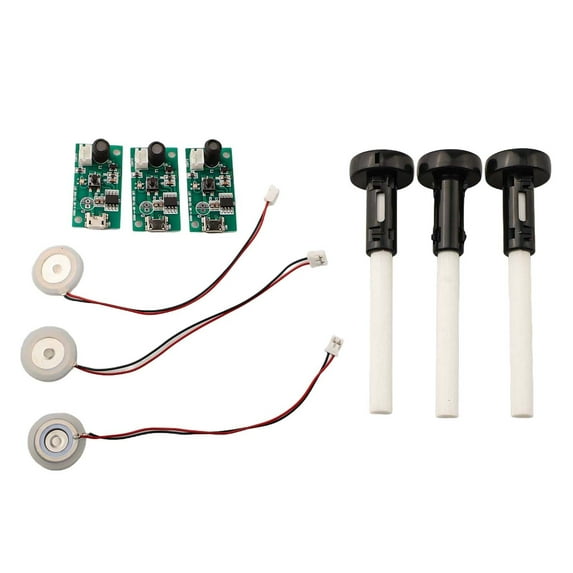

Package Content:
3 x control panel
3 x atomizer tablets
3 x black bracket
3 x cotton swab
Note:
. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
