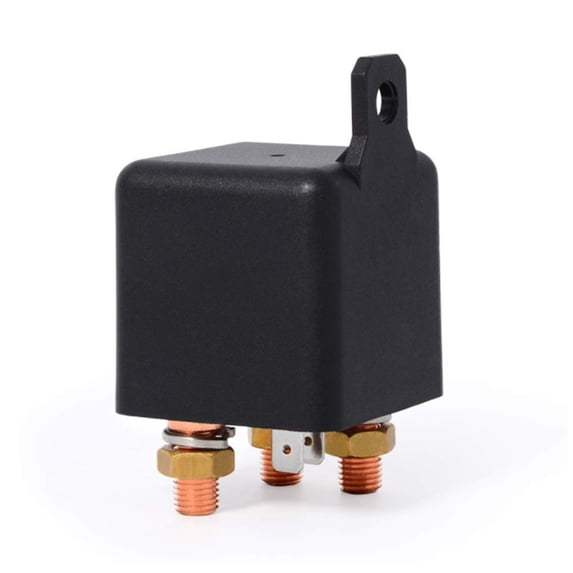

200A Amp Car Starter Automotive Relay Heavy Duty Spst 5Pin Dc 12V-72V Terminals

200A AMP Car Starter Automotive Relay Heavy Duty SPST 5pin DC 12V-72V Terminals

Product Description:

Contact Material: AgSnO12

Contact Form: Normal Open

Contact Ratings: No: 250A 14VDC

Contact Resistance: 100mMax at 6VDC 1A

Max switching Current: 250A (5ms)

Max Switching Voltage: 75VDC

Max Switching Power: 3500W

Life Expectancy Electrical: 100,000 Operations (at 30 Operations/min)

Life Expectancy Mechanical: 10,000,000 Operations

Coil Specification:

Nominal Voltage(VDC): 12V-72V

Coil Resistance (4.8W/2.4W): 30/120

Max Operate Voltage (VDC): 6.0~8.0

Mix Release (VDC): 1.2~3.6

Max Applicable Voltage (VDC): 15.6

Characteristics:

Temperature Range: -30°C ~+80°C

Vibration Resistance: 10~55Hz, 1.5mm

Shock Resistance:

Operations Extremes: 10g

Damage Limits: 100g

Humidity: 40%~85%

Insulation Resistance: 100m Min at 500VDC

Safety Standard: CCEE

Dielectric Strength Between Open Contacts 500VAC (for minute/sec)

Between Contact and coil: 750VAC (for minute/sec)

Operate Time: 15ms

Release Time: 10ms

Package including:

1 x Car Relay
