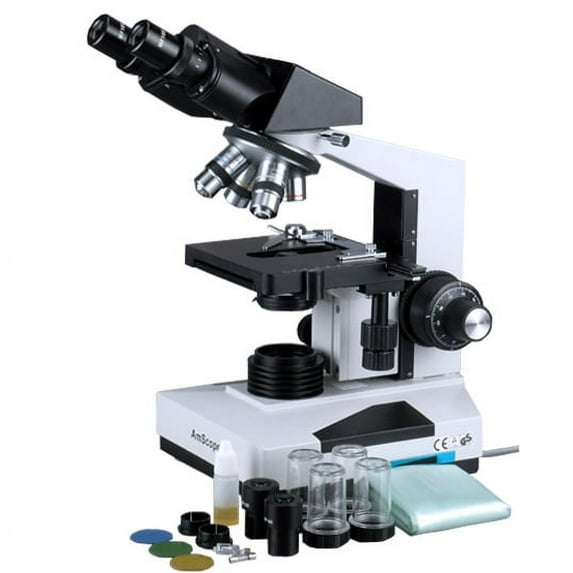

AmScope 40x-2000x Binocular Compound Darkfield Microscope New

(No ratings yet)

Key item features

Versatile Optics: Offers both darkfield and brightfield microscopy with eight magnification settings ranging from 40X to 2000X, supported by high-quality optical lenses and an Abbe condenser with iris diaphragm.
Robust Construction: Features a sturdy metal framework, a large 3-D double-layer mechanical stage with a stain-resistant finish, and all-metal mechanical parts for durability.
Advanced Illumination: Includes a built-in halogen illumination system with variable intensity and both darkfield and brightfield condensers for diverse viewing needs.
Precision Focusing: Equipped with a coaxial coarse and fine focusing system, including CA knob tension control, and focusing control knobs on both sides for precise adjustments.
Comprehensive Components: Comes with a 30-degree inclined 360-degree swiveling binocular head, four DIN achromatic objectives (4X, 10X, 40X, 100X), and two sets of wide-field eyepieces (WF10X and WF20X).
Detailed Specifications: Features a quadruple nosepiece, a 6-5/16" mechanical tube length, a stage dimension of 5-1/2"x 5-1/2", and a fine focusing division of 0.002mm.

Generated by AI

Specs

Standard optical microscope type
Compound
Microscope head type
Binocular
Maximum magnification
2000x
Minimum magnification
40x
Rec. use
Medical
Features
Halogen Lights

Price when purchased online

Report an issue with this seller

More seller options (2)

Starting from $520.99

Try 30 days of Walmart+ for just $1!

T&C apply.

About this item

Product details

This high power compound microscope provides both darkfield and brightfield optics. It is designed for professional applications in clinical offices and research laboratories. This microscope comes with a 30° inclined 360° swiveling binocular compensation-free head, 3-D mechanical stage, coaxial coarse fine focusing system, intensity-variable halogen illumination, and darkfield and brightfield condensers. It gives eight level magnifications: 40X-80X-100X-200X-400X-800X-1000X-2000X. It is a right instrument for clinical or research applications that need both phase contrast and bright field features.

Features :

A Great Affordable Brightfield and Darkfield System

Darkfield and Brightfield Condensers Included

30° Inclined 360° Swiveling Compensation-Free Binocular Head

Large 3-D Double Layer Mechanical Stage with Stain Resistant Finish

Low Position Coaxial Stage Movement Control Knobs

Coaxial Coarse Fine Focusing with CA Knob Tension Control

Fully Coated Optical System with High Resolution

Crystal Clear Sharp Images

High Quality Professional Grade Microscope

Perfect for Clinics, Vets, Doctors and Medical School Students

Eight Settings of Magnification: 40X-80X-100X-200X-400X-800X-1000X-2000X

Upward Stage Stopper to Protect Slides and Objectives

Abbe Condenser with Iris Diaphragm Filters

Rack and Pinion Adjustment for Condensers

Darkfield Dry Condenser

Built-in Halogen Illumination System with Variable Intensity

Focusing Control Knobs on Both Sides.

Four DIN Achromatic Objectives Included

Two Sets of Eyepiece Included

Full Optical Glass Elements

Precise Ground Glass Lenses

All Metal Mechanical Parts

Adjustable Interpupillary Distance

Adjustable Diopters on Both Oculars

Full Solid Metal Frame Construction with Stain Resistant Enamel Finish

Spare Bulb, Fuse and Immersion Oil Included

Manufactured under Restrict ISO 9001 Quality Control Standards

Excellent Five (5) Year Factory Warranty

Unbeatable Low Price Guaranteed or Difference Back!

Satisfaction Guaranteed or Your Money Back!

Specifications :

Nosepiece: quadruple

Mechanical Tube Length: 6-5/16" (160mm)

Head: binocular anti-mould viewing head inclined at 30 degree

Wide-Field Eyepiece: WF10X and WF20X

Full Coated Achromatic Objective: 4X, 10X, 40X (spring), 100X (spring, oil)

Stage Dimension: 5-1/2"x 5-1/2" (140x140mm)

Stage Traveling Range: 2-15/16"x 1-3/4" (75x45mm)

Focusing Range: 1-3/16" (30mm)

Division of Fine Focusing: 0.0000787" (0.002mm)

Abbe Condenser: NA=1.25 with rack and pinion focusing control

Darkfield Condenser: dry (NA 0.7-0.8)

Illumination: 6V/20W halogen bulb

Power Supply: 110V (220V version available), CE certified

Accessories: 6V/20W spare halogen bulb, immersion oil

Dimensions: 12" x 9" x 16"

Packing List :

One Binocular Compensation-Free Head

One Microscope Body with Frame and Base

Four High Quality DIN Objectives, 4X, 10X, 40X and 100X

One Pair of Widefield 10X Eyepieces

One Pair of Widefield 20X Eyepieces

One Dry Darkfield Condenser

One 6V/20W Spare Halogen Bulb

Two Color Filters

Two Spare Fuses

One Power Cord

One Dust Cover

Immersion Oil

User's Manual

Shipping Weight: 20 lbs

Darkfield and Brightfield Microscopy - Eight Power Settings 40X-2000X
High Quality Optical Lenses and Abbe Condenser with Iris Diaphragm
Sturdy Metal Framework and Double Layer Mechanical Stage
