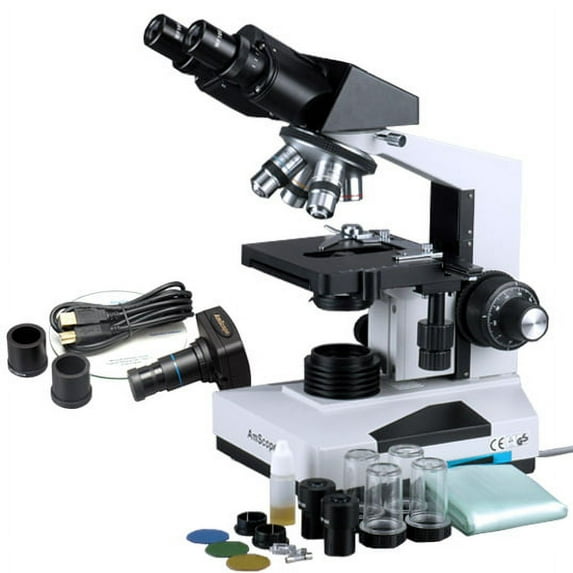

AmScope Compound Binocular Microscope 40X-2000X + 1.3 MP Camera New

This is a professional binocular microscope with 1.3MP high quality digital camera. It is designed for teaching demonstration, clinical examination and research purpose. It comes with a 30 degree inclined 360 degree swiveling compensation free binocular head, 3D mechanical stage and an intensity-variable halogen illumination system. This microscope offers eight levels of magnification, 40X, 80X, 100X, 200X, 400X, 800X, 1000X & 2000X.

The digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features.

This microscope is versatile, ready for various accessories and attachments for extra features. Its retails is $2,200.

Microscope Features:

30-degree Inclined 360-degree Swiveling Compensation Free Binocular Head

Large 3-D Double Layer Mechanical Stage with Stain Resistant Finish

Low Position Coaxial Stage Movement Control Knobs

Coaxial Coarse Fine Focusing with CA Knob Tension Control

Fully Coated Optical System with High Resolution

Crystal Clear Sharp Images

High Quality Professional Grade Microscope

Perfect for Clinics, Vets, Doctors, and Students.

Eight Levels of Magnification: 40X-80X-100X-200X-400X-800X-1000X-2000X

Upward Stage Stopper to Protect Slides and Objectives

Abbe Condenser with Iris Diaphragm Filters

Rack and Pinion Adjustment for Condenser

Built-in Halogen Illumination System with Variable Intensity

Dual Focusing Control Knobs

Four DIN Achromatic Objectives

Two Sets of Eyepieces

Full Optical Glass Elements

Precise Ground Glass Lenses

All Metal Mechanical Components.

Adjustable Interpupillary Distance

Adjustable Diopter on Ocular

Solid Metal Frame Construction with Stain Resistant Enamel Finish

Spare Bulb, Fuse, and Immersion Oil Included

Manufactured Under ISO 9001 Quality Control Standard

Excellent Five (5) Year Factory Warranty

Microscope Specifications:

Nosepiece: quadruple

Mechanical Tube Length: 6-5/16" (160mm)

Head: 360-degree swiveling compensation free binocular head inclined at 30-degree

Eyepieces: WF10X and WF20X

Achromatic Objectives: 4X, 10X, 40X (spring), 100X (spring, oil)

Stage Dimensions: 5-1/2"x 5-1/2" (140x140mm)

Stage Traveling Range: 2-15/16"x 1-3/4" (75x45mm)

Focusing Range: 1-3/16" (30mm)

Division of Fine Focusing: 0.0000787" (0.002mm)

Abbe Condenser: NA=1.25 with rack and pinion focusing control

Illumination: 6V/20W halogen bulb

Power Supply: 110V (220V version available), CE certified

Accessories: 6V/20W spare halogen bulb, bottle of immersion oil, blue, green yellow filters

Camera Specifications:

Sensor: Aptina MT9M111

Sensor Type: CMOS

Sensor Size: 4.6x3.7mm

px Size: 3.6

Resolution: 1.3MP

Frame Rate: 15@1280x1024, 26@640x512, 50@320x256

Sensitivity: 1.0V/lux-sec

Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux
