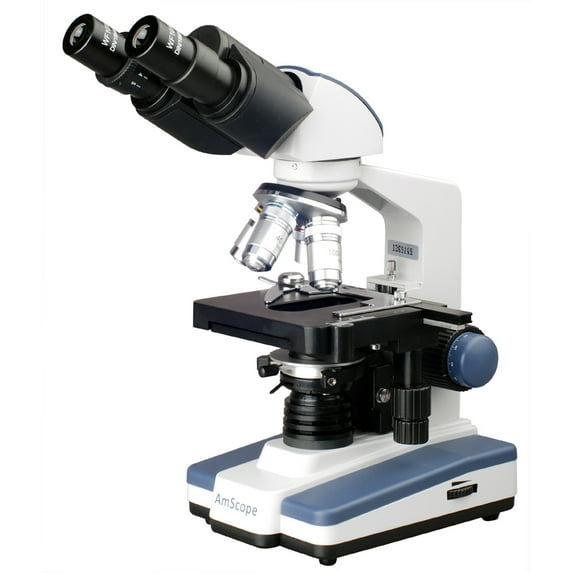

AmScope 40X-1600X LED Lab Binocular Compound Microscope w 3D Two-Layer Mechanical Stage New

(No ratings yet)

Key item features

Versatile Magnification: Offers eight widefield magnification settings ranging from 40X to 1600X, utilizing two pairs of widefield eyepieces (WF10X and WF16X) and four achromatic objectives (DIN 4X, 10X, 40X(S), 100X(S,Oil)).
Professional Head: Features a 30-degree inclined, 360-degree swiveling Siedentopf binocular head with adjustable interpupillary distance and ocular diopter for comfortable viewing.
Advanced Stage: Equipped with a large 3-D double-layer mechanical stage (118mm x 127mm) with a travel range of 70mm x 30mm, and coaxial coarse and fine focusing knobs on both sides.
Integrated Illumination: Includes an intensity-adjustable LED illumination system with a NA1.25 Abbe Condenser, iris diaphragm, and filters, powered by a 100-240VAC AC/DC adapter.
Robust Construction: Designed with high-quality precise optical glass elements and a stain-resistant double-layer mechanical stage, ensuring durability and clear imaging.
Comprehensive Applications: Ideal for teaching demonstrations, clinical examinations, and laboratory applications, suitable for bacterial, biological, and pharmaceutical research.

Generated by AI

Specs

Standard optical microscope type
Compound
Microscope head type
Binocular
Maximum magnification
1600X
Minimum magnification
40X
Rec. use
Educational
Features
LED Lights

Current price is $309.99

Price when purchased online

Free shipping
Free 90-day returns

How do you want your item?

I want delivery savings with

Try 30 days for just $1! Choose a plan at checkout.

How do you want your item?

Ships to

Arrives by Wed, May 27

Order within 14 hr 13 min

Sold by PatternPro Seller

Fulfilled by Walmart

4.678311949296646 stars out of 5, based on 12976 seller reviews(4.7)

Report an issue with this seller

Free 90-day returns

More seller options (1)

Starting from $309.99

Try 30 days of Walmart+ for just $1!

T&C apply.

About this item

Product details

Our new binocular compound microscope is designed for teaching demonstrations, clinical examinations and laboratory applications. It is a perfect microscope for teachers and students including those in medical school or with a major in biology. It comes with a Siedentopf binocular head, double layer mechanical stage with course & fine focusing, and an LED illumination system. There are eight magnification settings: 40X, 80X, 100X, 200X, 400X, 800X, 1000X & 2000X. This microscope is an ideal instrument for bacterial, biological, and pharmaceutical researches. Your product will arrive in a factory sealed box with a retail value above $1,200.

Features :

30 degree inclined 360 degree swiveling Siedentopf binocular head

High quality precise optical glass elements

Easy to attach a microscope camera or digital imager

Eight magnification settings, 40X-64X-100x-160X-400X-640X-1000x-1600X

Four Achromatic objectives, DIN 4X, 10X, 40X(S), 100X(S,Oil)

Two pairs of widefield eyepieces: WF10X and WF16X

Adjustable interpupillary distance

Adjustable ocular diopter

Variable intensity illumination

Coaxial coarse and fine focus adjustment

Focusing knobs are on both sides

Stage upward moving lock protects objectives and slides

Stain-resistant double layer mechanical stage

NA1.25 Abbe Condenser with iris diaphragm & filters

Rack and pinion adjustment condenser

Specifications :

Eyepieces: widefield, WF10X and WF16X

Objectives: Achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)

Head: 30 degree inclined 360 degree swiveling binocular

Interpupillary distance: 2-1/8" - 3-1/8" (53mm - 77mm)

Adjustable ocular diopter

Nosepiece: revolving quadruple

Mechanical Stage: 3-D double layer

- Size: 4-5/8" x 5" (118mm x 127mm)

Travel Range (X-Y): 2-13/16" x 1-3/16" (70mm x 30mm)

Condenser: NA1.25 Abbe condenser with iris diaphragm

Illumination: LED light, transmitted, intensity adjustable, GS and CE approved

Focusing: coaxial coarse & fine knobs on both sides

Power Supply: 100-240VAC, 50/60Hz, AC/DC adapter (UL approved) Included

Dimension: 11" x 7" x 13-3/4" (280mm x 178mm x 350mm)

Packing List :

One Siedentopf Binocular Microscope Head

One Microscope Body Frame with Double Layer Mechanical Stage and LED Illumination

Four DIN Standard Objectives, 4X, 10X, 40X and 100X

One Pair of Widefield 10X Eyepieces

One Pair of Widefield 16X Eyepieces

One Blue Color Filter

One Dust Cover

Sample Immersion Oil

User's Manual

Net weight: 11 lbs

Shipping weight: 13 lbs

Eight widefield magnification settings: 40X, 64X, 100X, 160X, 400X, 640X, 1000X &1600X
Professional 30 degree inclined 360 degree swiveling Siedentopf binocular head
Large 3-D double layer mechanical stage with coaxial coarse & fine focusing

info:

We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

Specifications

Standard optical microscope type

Compound

Microscope head type

Binocular

Maximum magnification

1600X

Minimum magnification

40X

Warranty

Warranty information

Our microscopes and accessories are manufactured under the strict guidelines established by ISO 9001: 2000 Standards. Five Year Warranty for Microscopes: All our microscopes come with a five (5) year factory warranty against manufacturing defects, covering labor and parts. One Year Warranty for Accessories: All our microscope accessories (USB cameras, illuminators, illumination, dust covers, and etc.) come with a one (1) year warranty, except when specified in the description. Warranty Services: We, AmScope, provide all the warranty repairs, replacements, and other services. Please feel free to contact us via email to info@amscope.com or at our Contact Us whenever you need any assistance with an item, parts, or to submit repair requests. Note: Buyers are responsible for round-way shipping and handling cost for warranty services. Our warranty covers parts and labor only.
