Hero image 0 of AmScope 40X-2000X Professional Infinity Plan Achromatic Trinocular Compound Microscope New, 0 of 4

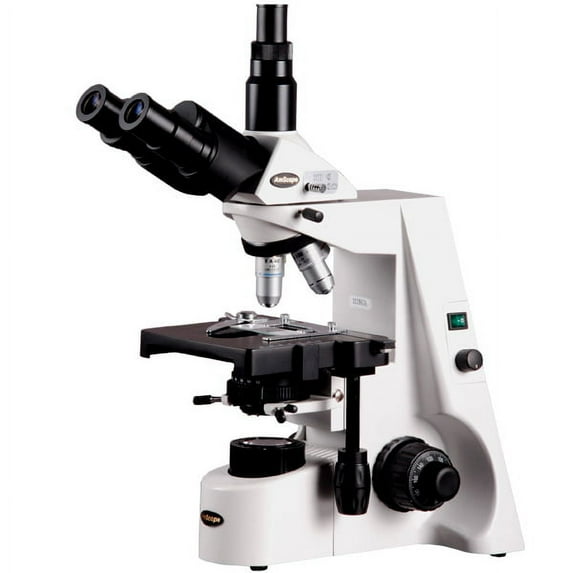

AmScope 40X-2000X Professional Infinity Plan Achromatic Trinocular Compound Microscope New

(No ratings yet)

Key item features

Optical Excellence: Features a superior infinity Plan Achromatic optical system for crisp, clear images and a fully coated optical system with high resolution.
Magnification Versatility: Offers eight magnification levels ranging from 40X to 2000X, including 40X, 80X, 100X, 200X, 400X, 800X, 1000X, and 2000X.
Ergonomic Design: Equipped with a 30-degree inclined, 360-degree swiveling trinocular Siedentopf head and a backward nosepiece for comfortable observation and spacious viewing.
Precision Focusing: Includes dual-side coaxial coarse and fine focusing controls with a low position coaxial focus system for precise adjustments.
Advanced Illumination: Utilizes a Kohler illumination system with a field diaphragm for lighting control and intensity-variable transmitted halogen lighting.
Robust Stage: Features a large double-layer mechanical stage with a stain-resistant finish and low-position coaxial stage movement control knobs.
Durable Construction: Built with a durable cast alloy frame and stand, finished with stain-resistant enamel for longevity.

Generated by AI

Specs

Standard optical microscope type
Compound
Microscope head type
Trinocular
Maximum magnification
2000X
Minimum magnification
40X
Rec. use
Medical
Features
Halogen Lights

Price when purchased online

Report an issue with this seller

More seller options (2)

Starting from $1,079.99

Try 30 days of Walmart+ for just $1!

T&C apply.

About this item

Product details

This superior professional trinocular compound microscope has an extreme widefield infinity Plan Achromatic optical system that offers crisp clear images. It comes with a 30 degree inclined 360 degree swiveling trinocular Siedentopf head, extreme widefield eyepieces, infinity Plan Achromatic objectives, coaxial coarse & fine focusing, 3-D mechanical stage with low position control, and a wide band voltage (85-230V) Kohler halogen illumination. Its backward nosepiece configuration has more than enough space for convenient operating and comfortable observing. The trinocular port uses the third port for camera capabilities giving you the remaining two ports to view your specimen. The microscope provides eight levels of magnification: 40X, 80X, 100X, 200X, 400X, 800X, 1000X and 2000X. It is a superb instrument for clinical offices, veterinary labs and research laboratories, and comes in a factory sealed box with a retail value of $3000.

Features :

Affordable Infinity Plan Achromatic Optical Microscopy System with Kohler Illumination!

Backward Nosepiece Allows Spacious Viewing for a More Comfortable Observation

Large Mechanical Stage with Two-microslide Specimen Clamp

Humanized Configuration Design Providing Comfortable Operation

Front Open Light house Framework for Easy Access to Light Bulb

Fully Coated Optical System with High Resolution

Crystal Clear Sharp Images

Precise Mechanical Control System

Kohler Illumination System with Field Diaphragm for Lighting Control

30° Inclined, 360° Swiveling, Trinocular Siedentopf Head

Eight Magnification Levels: 40X, 80X, 100X, 200X, 400X, 800X, 1000X and 2000X

Intensity-Variable Transmitted Halogen Lighting System

Abbe Condenser with Iris Diaphragm and Swing-Out Filter Holder

Rack and Pinion Adjustment for Condenser

Low Position Coaxial Stage Movement Control Knobs

Dual Side Coaxial Coarse and Fine Focusing Control

Adjustable Interpupillary Distance

Adjustable Diopter on Ocular

Durable Cast Alloy Frame & Stand with Stain Resistant Enamel Finish

Four Infinity Plan Achromatic Objectives: 4X, 10X, 40X, 100X

Two Sets of Wide Field Eyepieces: Wide Field 10X (22mm Field of View) and 20X

Large Double Layer Mechanical Stage with Stain Resistant Finish

Upward Stage Stopper to Protect Objectives and Slides

Compatible with a Wide Range of Optional Accessories, Including Phase Contrast and Darkfield Condensers

Manufactured under ISO 9001 Quality Control Standards

Excellent Five (5) Year Factory Warranty

Unbeatable Low Price Guaranteed or the Difference Back!

Satisfaction Guaranteed or Your Money Back!

Specifications :

Optical System: Plan Achromatic infinity corrected

Nosepiece: backward, ball bearing quadruple

Head: Siedentopf trinocular head, 30-degree inclined

Eyepiece: WH10X/22mm and WH20X

Objectives: infinity Plan Achromatic objective 4X, 10X, 40X (spring), 100X (spring, oil)

Focusing: low position coaxial focus system

Interpupillary Adjustment Mechanisms: 2-3/16" - 3-0" (55 - 75mm)

Mechanical Stage: 7.1"x5.9" (180mm x 150mm)

Stage Traveling Range: 3"x 2" (75x50mm)

Division of Fine Focusing: 0.0000787" (0.002mm)

Condenser: N.A. 1.25, swing with iris diaphragm & filter

Illumination: Kohler, halogen 12V/20W

Power Supply: 85V-230V wide voltage, CE certified

Superior infinity Plan Achromatic optical system offering crisp clear images
40X-2000X eight extreme widefield magnification settings
Backward nosepiece configuration allows spacious viewing for a more comfortable observation

info:

We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

Specifications

Standard optical microscope type

Compound

Microscope head type

Trinocular

Maximum magnification

2000X

Minimum magnification

40X

Warranty

Warranty information

Our microscopes and accessories are manufactured under the strict guidelines established by ISO 9001: 2000 Standards. Five Year Warranty for Microscopes: All our microscopes come with a five (5) year factory warranty against manufacturing defects, covering labor and parts. One Year Warranty for Accessories: All our microscope accessories (USB cameras, illuminators, illumination, dust covers, and etc.) come with a one (1) year warranty, except when specified in the description. Warranty Services: We, AmScope, provide all the warranty repairs, replacements, and other services. Please feel free to contact us via email to info@amscope.com or at our Contact Us whenever you need any assistance with an item, parts, or to submit repair requests. Note: Buyers are responsible for round-way shipping and handling cost for warranty services. Our warranty covers parts and labor only.

Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
