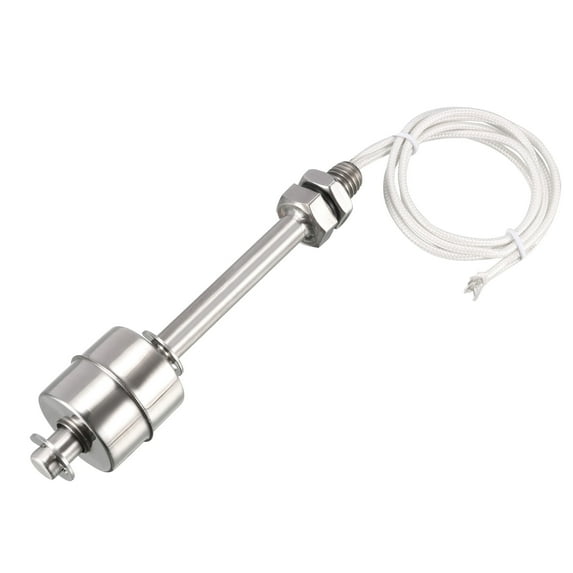

Stainless Steel Float Switch 120 mm Fish Tank Vertical Water Level Sensor

Specifications:
Product Name: Float Switch
Float Ball Number: 1
Max Contact: Rating 10W
Max Switching Voltage: 0-220V
Max Switching Current: 0.5A
Max Breakdown Voltage: 220V DC
Max Carry Current: 1.0A
Max Contact Resistance: 100mohm
Temperature Rating: -10 ~ +60 C
Float Ball Material: Stainless Steel
Float Ball Size(Approx): 28x26mm/1.1x1.02inch(Dia*H)
Thread Size(Approx): 10mm/0.39inch
Total Length: 120mm/4.72inch
Cable Length: 380mm/14.96inch
Net Weight: 53g

Package Content
1 x Float Switch

 Description:

• A float switch is a device used to sense the level of liquid within a tank. The switch may actuate a pump, an indicator, an alarm, or other device.
• It can be easily converted from normally open to normally close by inverting the float.
• The versatility of this vertically mounted sensor means that it can be installed either at the top or base of your tank,depending on whether you wish to detect the water is rise or fall.


Note:
because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay and contactor are not included here.

Feature:

• This float switch is a simple structure,easy installation liquid level controller.It does not have a complex circuit,will not be disturbed,as long as the material selection,liquid,pressure or temperature can be used in any environment.
• Light weight and simple working principle,high reliability.
• The float level switch is widely used in electronic,electrical,chemical,water treatment,drainage and other walks of life level control and alarm.
