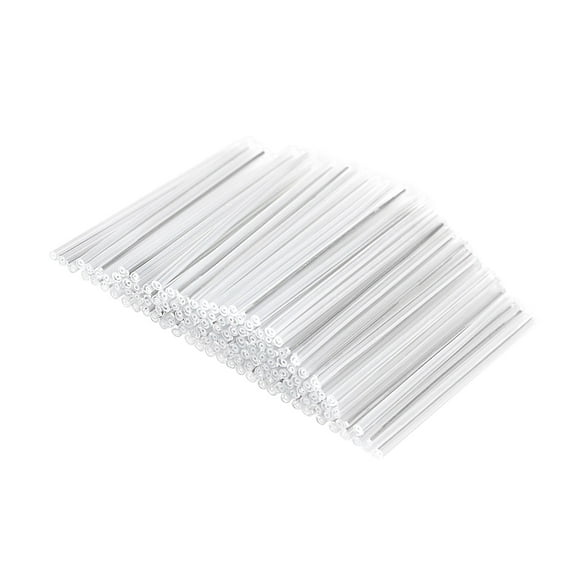

45x1.4mm OD Fiber Optic Sleeves 2 Ends Pre-Shrunk Fiber Optic Fusion Tube Protector Sleeves Clear 200pcs

Description:

1. fiber optic fusion splice protector sleeves and shrinks evenly. Makes a great weather resistant seal.

2. The clear sleeve design permits easy centering of splice before heating.

3. Sealing structure makes the splice free from the effect of temperature and humidity of the environment.

4. Smooth stainless steel reinforcing member ends decrease the risk of fiber break during installation.

5.Single hole (2 ends preshrunk) ends eliminates improper fiber threading.

Specification:

Material: EVA, PE, 304 Stainless Steel

Main Color: Clear, Silver Tone

Rod Number: 1

Total Length: 45mm/1.77"

Length of Steel Rod: 40mm/1.57"

Diameter of Steel Rod: 0.5±0.02mm

Heat Shrinkable Tube Initial Outer Diameter: 1.4±0.1mm

Heat Shrinkable Tube Outer Diameter after Shrinking: 1.35-1.45mm

Thickness of Heat Shrinkable Tube: 0.2±0.05mm

Hot Melt Tube Inner Diameter: 0.5±0.1mm

Thickness of Hot Melt Tube: 0.15±0.05mm

Shrinking Temperature Range: 90-120 Celsius Degree

Working Temperature Range: -55 - 105 Celsius Degree

Max installation time: 60 seconds

Package Content: 200(+/-2%)pcs x Fiber Optic Sleeves
