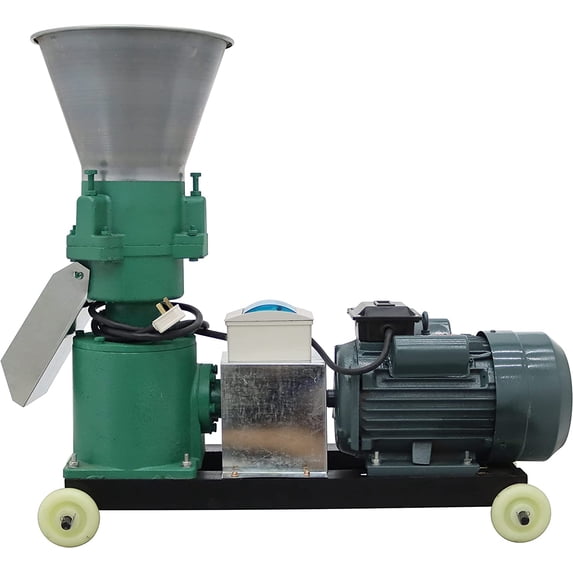

EQCOTWEA Only Body of Plant Equipment Chicken Feed Pellet Mill Machine Feed Grinder for Animal without Plate
Key item features
- Grindstone of granulator: 6 processing processes, such as forging, cutting, drilling, drilling, heat treatment and polishing, so the products can be produced faster and have longer life
- High quality motor: copper wire thickened coil, small heating, not hot hand, full power, power standard, maintenance free, integrated heat treatment gearbox
- The machine is mainly suitable for the processing of rabbits, fish, ducks, chickens, shrimps, pigs, cattle, sheep and industrial pellets. Widely used in industrial, plastic pellets, organic fertilizer particles, wood pellets, etc
- By adjusting the compression ratio of the mold, the temperature of the granulation can be lowered, and granulation of low-temperature materials such as feed, organic fertilizer, compound fertilizer, and biological bacterial fertilizer can be produced. The granulated water is about 13%, and it does not need to cool down naturally.
- The utility model has the advantages of simple structure, wide adaptability, small floor space and low noise.
Specs
- BrandEQCOTWEA
- Has written warrantyNo
More seller options (1)
About this item
Product details
Note:
1. Before using the machine, it is necessary to adjust the screw of the pressure roller to the appropriate position. The pressure roller and the pressure plate should be closely combined, and the three adjusting screws should be on the same horizontal plane.
2. Please fill the oil tank before using the machine. Do not idle the machine for more than 2 minutes.
3. Double-check the belt and the screws before operation.
4. Clean up the rest after use to prevent damage to the machine.
5. This machine only has a body without a pressure plate. Customers can purchase it separately if they need. We have 2MM, 3MM, 4MM, 5MM, 6MM, 8MM, 10MM, 12MM plate sizes for customers to choose.
6. This machine only has a body, without a pressure plate. The picture is only used to describe the function display.
Precautions:
1. When using, it should be noted that there should be no foreign matter such as stones and ironblocks in the raw materials. After the pellet machine has been working continuously for morethan ten shifts, the pressure roller oil hole, the universal joint oil hole, and the linkage shaft oilhole need to be filled with high-temperature lubricating grease to make the pressure roller Goodworking performance and extended bearing life.
2. During granulation, it is strictly forbidden for the pressure roller to contact with the templateto run idly, and the continuous feeding can not be interrupted.At the same time, the pressureroller shaft nut is locked to avoid loosening and damaging the spindle keyway.
3. When granulating, there is no granulation, no discharge, the template should be removed, andafter opening one by one, some fiber feed can be added appropriately to restart the granulation.
4. Always check the tightness of the screws in each part of the machine. If there is oil leakage inthe gearbox, replace the oil seals in time, and check whether the bearings in the machine headare short of oil.
5. When the pellet machine is working, do not reach into the feeding port with your hands. Ifnecessary, use wooden sticks to help feed the pellets.
6. Before turning on the machine, it is necessary to add less material before turning on the
machine. When shutting down, leave a small amount of feed in the machine to prevent the pressroller of the machine from contacting the template from idling.
7. If the machine is stuck in operation, stop it immediately, press the pressure roller until thebolt is flat,and then restart the machine.
8. Each time the work is completed, the adjusting pressure roller bolts must be loosened.
9.Iron or stones cannot be put into the griller.
10.Check the elasticity of the belt, and the bearing frequently. Add oil in time when it needs to.
Item Included: 239551
EQCOTWEA Only Body of Plant Equipment Chicken Feed Pellet Mill Machine Feed Grinder for Animal without Plate
- Grindstone of granulator: 6 processing processes, such as forging, cutting, drilling, drilling, heat treatment and polishing, so the products can be produced faster and have longer life
- High quality motor: copper wire thickened coil, small heating, not hot hand, full power, power standard, maintenance free, integrated heat treatment gearbox
- The machine is mainly suitable for the processing of rabbits, fish, ducks, chickens, shrimps, pigs, cattle, sheep and industrial pellets. Widely used in industrial, plastic pellets, organic fertilizer particles, wood pellets, etc
- By adjusting the compression ratio of the mold, the temperature of the granulation can be lowered, and granulation of low-temperature materials such as feed, organic fertilizer, compound fertilizer, and biological bacterial fertilizer can be produced. The granulated water is about 13%, and it does not need to cool down naturally.
- The utility model has the advantages of simple structure, wide adaptability, small floor space and low noise.
Specifications
Brand
Has written warranty
Warranty
Warranty information
