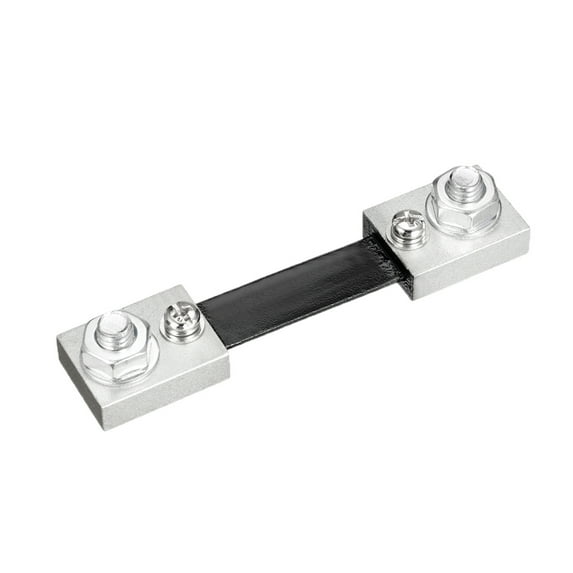

75mV 100A Shunt Resistor for DC Current Ammeter Analog Panel Meter External Shunt

• External type. Two holes on both sides for a solid placing, and nuts for the circuit connection.
• Connection. A shunt needs to be placed parallel with the Ammeter(Moving Coil Galvanometer), to bypass the current. Normally, the two outside terminals were connected with the power circuit directly, and both the inside terminals placed in series with the Meter.
• 0.5% Accuracy and 120% Overload Rated Current(For 2 hours)

Rated Current: 100A

Voltage Drop: 75mV

Materials: Copper

Overload Rated Current: 120%(2 Hours)

Accuracy: 0.5%

Working Temp: -40C to 60C(-40F to 140F)

Type: FL-2 External

Length: 105mmmm

Width: 22mmmm

Height: 26mmmm

Weight: 139g
