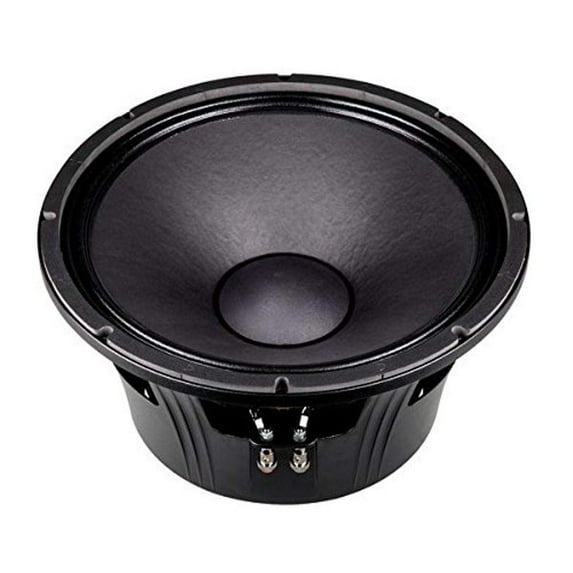

P-AUDIO A- A-B Box C151600CA,Black

* 3 voice coil
* 1600 watts peak power handling
* active balanced cooling
* ferrite magnetics
* precision inside/outside coil geometry
* die cast aluminum chassis
applications
the p audio c15-1600ca is a high performance wide bandwidth transducer. The c15-1600ca is an upgraded design that features many of p audios new technologies and performance upgrades. The 15 inch (381mm) diameter piston will produce extremely high sound pressure levels at both low and mid band frequencies and is ideal for high level response in both live sound and recorded music venues. The transducer uses high energy ferrite magnetics to achieve a very high acoustic output to weight ratio. The c15-1600ca has been optimized for use in two way or three way sound reinforcement systems and has an operating range of 55hz to 2000hz.
the c15-1600ca features a large 3 inch (75.7mm) diameter voice coil that provides an aes rated 400 watts of continuous power handling and a full 1600 watts of peak rated power handling when sufficient amplifier headroom is available. The c15-1600ca utilizes p audios auto balanced cooling (abc) technology to not only improve transducer power handling and reliability but to also increase power compression performance by carefully balancing and directing airflow to critical areas.
the voice coil design is a bobbin wound geometry with p audios inside/ outside wire technology to improve conversion efficiency and provide a large cross-sectional area for superior cooling.
the transducer chassis is a die cast aluminum design that insures a very high degree of structural integrity.
nominal diameter...381 mm/15 in
power rating.... 400 n(aes)
nominal impedance....8 ohms
sensitivity....97 db
frequency range...55-2000 hz
chassis type...Cast aluminum
magnet type...Ferrite
magnet weight...2.74 kg/96.6 oz
voice coil diameter..75.7 mm/3.0 in
coil material....Al-w
former material...Glass fiber
cone material...Paper
surround material....Cloth
suspension....Single
x-max...3.25 mm/0.13 in
gap depth...12.0 mm/0.47 in
voice coil winding width..18.5 mm/0.73 in
net weight....10.1 kg/22.3 lb
packing dimension wxdxh.430 x 430 x 230 mm
shipping weight..11.3 kg/24.9 lb
small signal parameters
re....5.4q
fs....42 hz
mms...102.98 g/3.63 oz
mmd....88.60 g/3.13 oz
qms.....5.09
qes.....0.61
qts....0.55
vas....141.96iv5.01 ft?
bl...15.55 tm
cms....1.4e-04 m/n
rms...5.40 ns/m
le (at 1khz)....0.35 mh
sd....855 cm2 [single]
