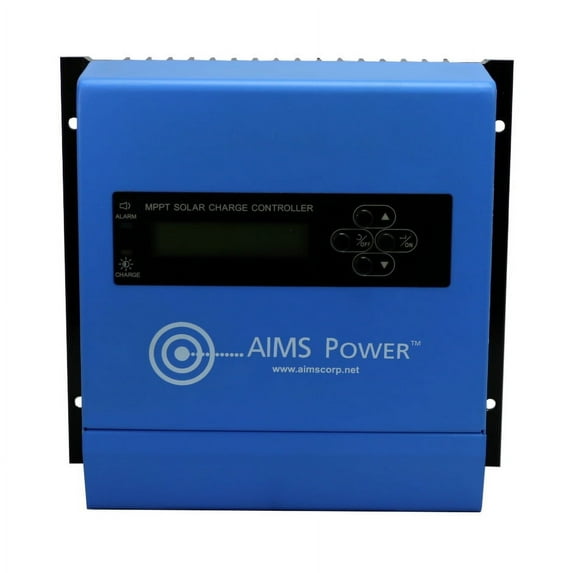

AIMS SCC30AMPPT 30 AMP Solar Charge Controller 12 / 24 VDC MPPT ETL Listed to UL 458 / CSA 22.2

• MPPT technology: Maximum Power Point Tracking produces maximum available power from PV array to battery bank utilizing peak power of the I-V curve
• Quality heatsink cooling – no fans needed and no thermal derating
• Battery type selector and user defined charging voltage
• 4 stage charging
• PV input, battery output and load control ports
• Stackable
• Reliable electronics, over engineered components generating less heat
• Very efficient up to 99%
• Low self consumption
• Thermal design rugged case
• Over temp protection
• Overload, short circuit, high and low voltage protection
• CE, ETL to UL1741 and RoHS compliant
• Marine coated
• Mounting holes

ELECTRICAL
PV Operating Voltage:

• 18-100Vdc@12V
• 34-100Vdc@24V

Rated PV input:

• 12V – 400 Watts
• 24V – 800 watts

Maximum battery current: 30 amps

DC load port: 30 amps
Max PV open circuit voltage: 100Vdc
Self power consumption: <2 watts
Efficiency: 97%
Protections: overload, short circuit, high voltage, high temperature, low voltage and auto correct
Optimal cooling case design – built for extreme conditions
CHARGING
Battery types: gel, sealed, AGM, flooded, lithium, user defined (adjustable voltage)
4 Stage charging: bulk, absorption, float and equalize
Bulk charge voltage: sealed 14.4V, AGM/Gel 14.2V, flooded 14.6V, user defined 10-15V
Float charge voltage:  sealed/AGM/Gel 13.7V, flooded 13.6V, user defined 10-15V
Equalize charge voltage: sealed 14.6V, AGM/Gel 14.8V, flooded 14.8V, user defined 10-15V
Low voltage reconnection: 12.5V
Low voltage disconnect voltage: 10.5V (10.5-12.5V adjustable)
MECHANICAL
Enclosure: IP43 protection, metal
Cooling: heatsink
Humidity: 100% non-condensing
Temperature compensation: -5mV⁰C / 2V with BTS
Temperature range: -25⁰C to 60⁰C or -13⁰F to 140⁰F
Conformal coated for marine environments
Wire knockouts: 1.25”
