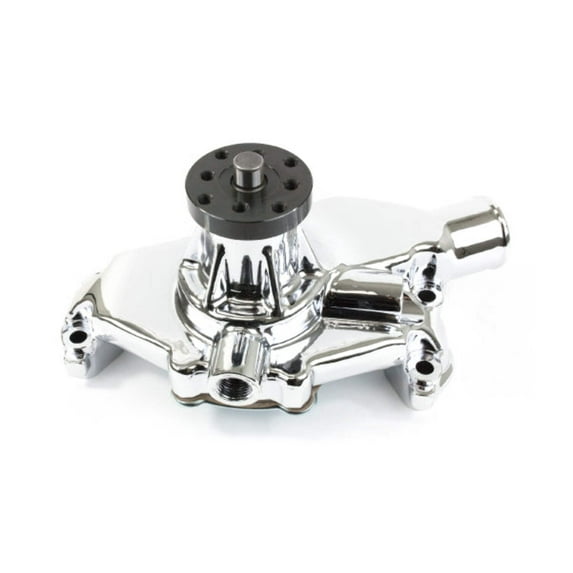

Short-Style High-Flow Mechanical Water Pump for Chevy Small Block - Chrome

From top to bottom, TSP's mechanical pumps are designed for greater performance and reliability. Cast from A356-T6 aluminum, they are strong and manage heat better than cast iron. They feature an 8-blade, cast aluminum anti-cavitation impeller. Its 5/8" shaft is driven by heavy-duty bearings and seals, and the crank hub is 1/2" thick for added strength.

Lightweight Aluminum Housing
All mechanical water pumps from TSP are cast from lightweight A356 aluminum and heat-treated to T6 hardness. This not only provides strength, but aluminum works to manage heat far better than cast iron. They are available in a satin, polished, or chrome finish.

High Quality Components
From top to bottom, TSP's mechanical pumps are designed for greater performance and reliability. They feature an 8-blade, cast aluminum anti-cavitation impeller. Its 5/8" shaft is driven by heavy-duty bearings and seals, and the crank hub is 1/2" thick for added strength.

Compatible with:
CHEVROLET SMALL BLOCK V8 GEN. I
• 4.3 L / 265 in3
• 4.4 L / 267 in3
• 4.6 L / 283 in3
• 4.9 L / 302 in3
• 5.0 L / 305 in3
• 5.0 L / 307 in3
• 5.4 L / 327 in3
• 5.7 L / 350 in3
• 6.6 L / 400 in3

NOTE:
Short style used in most passenger cars from '55-'68 and light trucks and from '55 - '72.
Most Corvettes used a different short style pump, measuring 5.800" in height.
It is important to measure to determine pump style.
