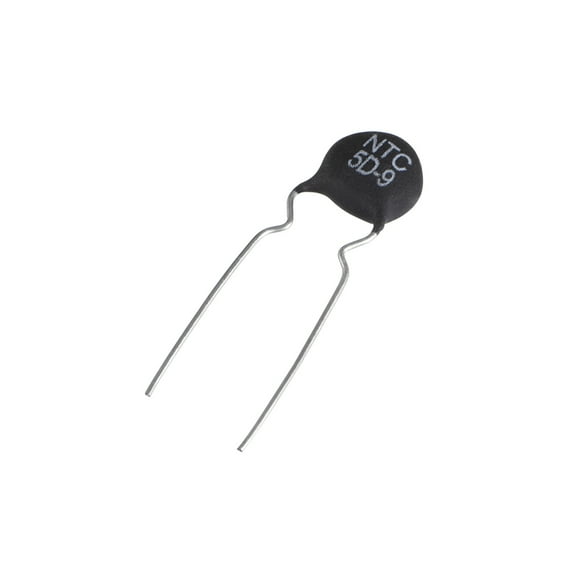

Hero image 0 of Uxcell NTC Thermistor Resistor 5D-9 3A 5 Ohm Inrush Current Limiter 20 Pcs, 0 of 3

Uxcell NTC Thermistor Resistor 5D-9 3A 5 Ohm Inrush Current Limiter 20 Pcs

Name: Uxcell NTC Thermistor Resistor 5D-9 3A 5 Ohm Inrush Current Limiter 20 Pcs
Brand: Uxcell
SKU: 351613544
Price: 9.06 USD
Availability: InStock
Rating: 4 (1 reviews)

4 stars out of 1 review

(4.0)|

1 rating

Key item features

Core Functionality: This NTC thermistor acts as an inrush current limiter, offering reliable and stable over-current control with a strong capacity to inhibit surge current.
Key Specifications: Features a 5 Ohm zero power resistance at 25°C, a B value of ≥2800, and a maximum steady-state current of 3A.
Physical Attributes: Constructed from ceramic and metal, with a body size of approximately 8.6 x 3.8mm (D*T) and a pin pitch of 7mm.
Thermal Performance: Exhibits thermal shock resistance, a wide operating temperature range of -50 to 200°C, and a thermal recovery time coefficient of 35 seconds.
Versatile Applications: Suitable for controlling inrush current in motors, heaters, bulb voltage stabilizers, electronic energy-saving lamps, and electronic rectifiers.
Important Limitation: The thermistor is designed for single-circuit use and cannot be connected in parallel within a circuit.

Generated by AI

Specs

Electrical resistance
5 ohm
Watts
11 mW
Brand
Uxcell
Impedance
5 ohm
Model name
5D-9
Dimensions
2.76 x 1.57 x 0.79 Inches

Current price is $9.06

Price when purchased online

Free shipping
Free 30-day returns

How do you want your item?

Columbus, 43215

Arrives between Apr 22 - Apr 27

Sold and shipped by Tasharina Corp

4.065879944993444 stars out of 5, based on 31271 seller reviews(4.1)

Report an issue with this seller

Free 30-day returns

About this item

Product details

Description:
* The NTC thermistors are reliable and stable, with wide range of over-current control.
* With small size and large power, they have strong capacity to inhibit surge current.
* Large material constant (B value), with small residual resistance.
* Thermal shock resistance, with wide range of operating temperature.
* Used for controlling the inrush current of motor, heaters, bulb voltage Stabilizer, electronic energy-saving lamp, electronic Rectifier and other electronic installations.
* Pin Pitch: 7mm / 0.28inch
* Lead Size(Approx.): 0.7 x 27mm / 0.03 x 1.06inch (D*L)
* Body Size(Approx.): 8.6 x 3.8mm / 0.34 x 0.15inch (D*T)

Specification:
* Product Name: NTC Thermistor
* Color: Black, Silver Tone
* Material: Ceramic, Metal
* Model: 5D-9
* Zero Power Resistance @25C: 5 Ohm
* B Value: >/=2800
* Thermal Recovery Time Coefficient: 35s
* Thermal Dissipation Constant: 11mw/C
* Operating Temperature: -50-200C
* Max Steady State Current: 3A
* 25C Insulation Max Resistance: * Lead Type: Radial Direction
* Lead Shape: I

Package Content:
* 20 x NTC Thermistors

Note: The thermistor cannot be used in parallel in the circuit.
