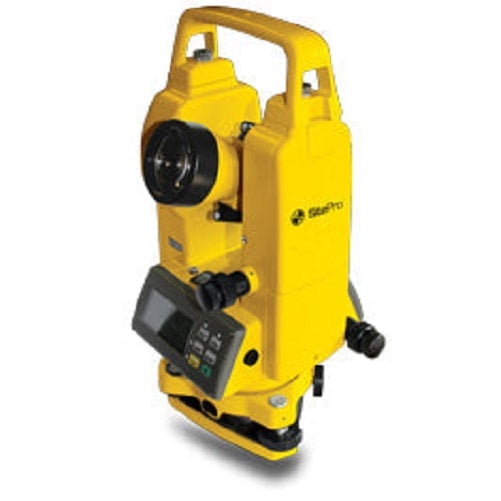

SitePro 26-DT205 5-sec Digital Theodolite

set to draft on 2.2.206 Specifications Magnification: 30x Image: Erect Field of View: 1° 30 Accuracy: 5" Angle Measurement: Absolute Encoding Automatic Compensation: Yes Plummet Type: Optical Environmental Protection: IP54 Power Source: (4) 1.5v AA Alkaline Batteries/NiMH Battery Operating Temperature: -4°F to +122°F (-20°C to +50°C) Weight: 10.2 lbs Warranty: 2 Years Product Description The SitePro DT2-05 5-Second Digital Theodolite provides high-precision angle measurement for construction layout, stakeout, and alignment. Its 30X erect-image telescope with a 1°30' field of view and 45mm aperture delivers clear sighting with a minimum focus distance of just 1.3 meters. Equipped with absolute encoding for angle detection, it supports 1" or 5" angle reading increments and displays measurements on dual backlit LCD screens. The horizontal axis can be read from both sides, while the vertical angle is readable from one side. A built-in tilt sensor provides automatic compensation within ±3', ensuring consistent accuracy. The optical plummet with 3X magnification and crosshair reticle allows fast and precise setup over points. The instrument is sealed to IP54 standards for dust and water resistance and operates reliably in temperatures from -4°F to 122°F. Powered by four AA batteries or rechargeable NiMH cells, the DT2-05 is field-ready for long days on the jobsite. In the Box DT-205 Theodolite Sunshade Tool kit Rain cover Plumb bob Carrying case Rechargeable battery kit Alkaline battery tray User guide Brochures and Manuals DT2-05 5-Sec Digital Theodolite User Manual
