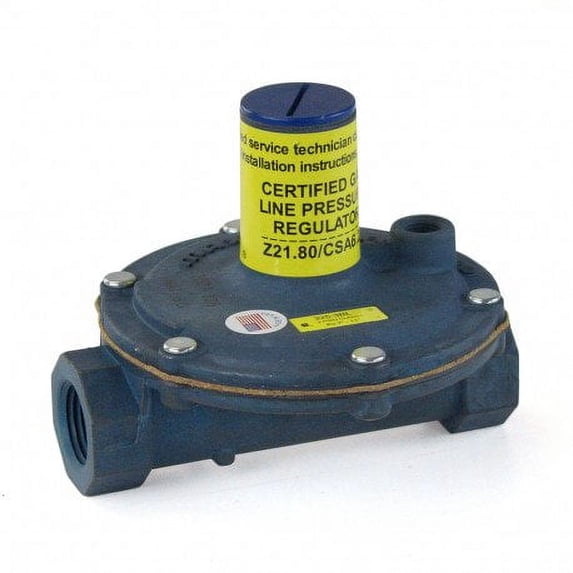

Maxitrol 325-3BL 1/2 1/2 2PSI 140000BTU 7-11WC

325-3BL series, Maxitrol 1/2 gas line pressure regulator with Imblue coating for improved corrosion resistance in outdoor applications.

NOTE1: this product requires 13A15 vent protector when installed outdoors.
NOTE2: This product is intended for installation by a licensed gas professional.

Features:

Imblue coating for enhanced corrosion resistance in outdoor applications
Lever-acting design
Positive dead-end lockup
Precise control from full flow down to pilot flow
Suitable for natural (NG), manufactured, mixed gases, liquefied petroleum gases and LP gas-air mixtures
CSA certified & labeled
Complies with ANSI Z21.80/CSA 6.22 (standard for line pressure regulators) and ANSI Z21.18 (as appliance regulator)
Made in the USA

Specifications:

Inlet/Outlet Connection: 1/2 NPT
Rated Inlet Pressure: 2 psi (CSA Certified); 5 psi (w/ OPD); 10 psi (Maxitrol Rated)
Outlet Pressure Range: 7 - 11 w.c. (White Spring)
Factory-Set Pressure (w.c.): 8
Emergency Exposure Limits: 65 psi (Inlet Side Only)
Capacity (Combined): 250,000 BTU/hr
Max Individual Load (Single Appliance): 140,000 BTU/hr
Operating Temperature Range (Ambient): -40 - 205F
Vent Connection: 1/8 NPT
Housing material: Aluminum
Dimensions (L x H): 4.2 x 3.5
