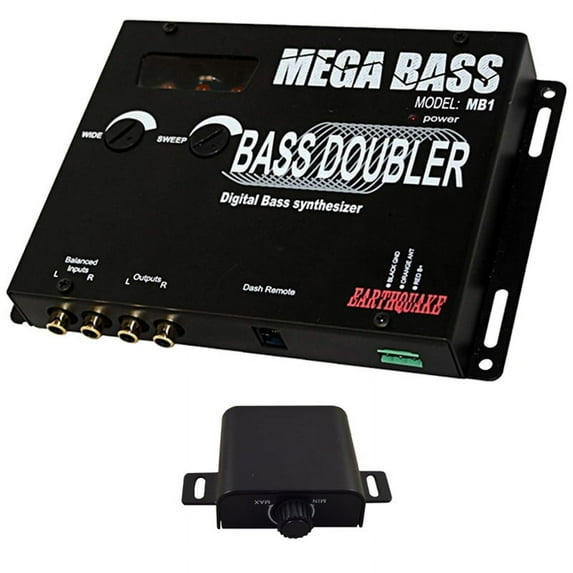

Earthquake Sound MB1 MEGA Bass Digital Bass Synthesizer Car Audio Bass Doubler

Earthquake Sound MB1 MEGA Bass Digital Bass Synthesizer Car Audio Bass Doubler

Brand: Earthquake Sound
MPN: MB1
Condition: New

-Advanced digital bass restoration system detects the input level from a factory stereo, then adds more bass at high volume levels while keeping your bass response balanced at low volume.
-The SWEEP and WIDE controls manage frequency ranges for extremely high precision, custom-built bass response.
-With Dash-mounted remote control knob
-Advanced bass equalization circuit contours the restored bass to your speaker system.
-DCProtection Filter overdrive circuitry allows the user to have massive, hard hitting, concrete shattering bass while protecting the speakers from DC failures.
-Bass Expander Limited circuitry allows it to enhance the bass output of any audio system while controlling damaging burps.

SPECIFICATIONS:
Maximum Input Level: 15 Vrms
Maximum Output Level: 13.5 Vpeak
Frequency Response: 10Hz - 80kHz ±0.3dB
Total Harmonic Distortion: 0.001%
Balanced Input Noise Rejection: > 60dB
Input Impedance: 10 kOhms
Output Impedance: 150 Ohms
Power Supply: High headroom PWM
Power Draw: 160 mA
Recommended Fuse Rating: 1 Ampere
Dimensions (H x W x D): 1-1/8” x 8” x 5-3/4” (including RCAs)
Weight: 1.7 lbs
ADJUSTABLE SETTINGS:
Bass Frequency: 27Hz - 63Hz
Bass Bandwidth: Wide 30Hz-250Hz
Bass Output Setting: 2.5V 5V 7.5V 10+V
Input Circuit: Balanced, Unbalanced
Ground Isolation: Isolated, 200-Ohm, Ground
Subsonic Filter: 25Hz 30 Hz 33Hz 35Hz 40Hz 45Hz
