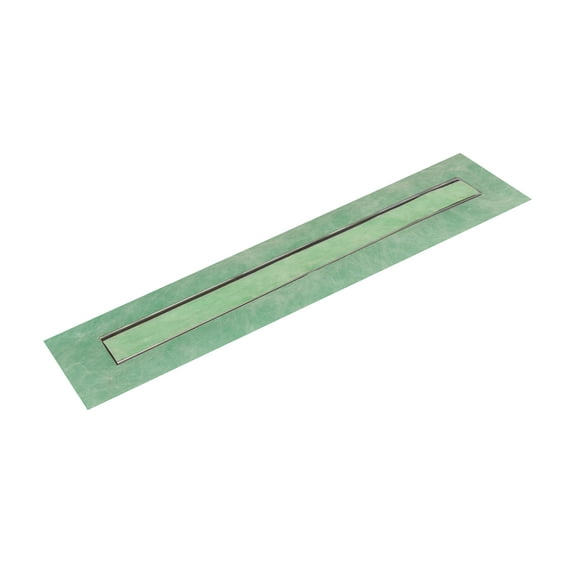

SereneDrains 304 Stainless Steel 30 Inch Invisible Tile in Shower Drain Kit Linear Shower Drains for Tile Floor Long Hair Catcher Strainer Grate Cover Bathroom

SereneDrains Linear Shower Drains - Slim Design Finishless Invisible Drain

Invisible Drain: The Invisible Linear Drain Slim design in which the drain is completely hidden under the tile. The water goes into a gap between the tiles.

Complete Set: Linear Shower Drain Channel and Grate, Stainless Steel Hair Trap, Rubber Fitting, Grate Lifting Hook and Waterproofing Membrane Sheet to place around the drain flange (not required but included).

Available Sizes (Approximate Dimensions) -

Length 16" (400mm), Intake 7.80 sq. in.
Length 24" (600mm), Intake 11.67 sq. in.
Length 30" (762mm), Intake 14.79 sq. in.
Length 35.43" (900mm), Intake 17.48 sq. in.
Length 39.37" (1000mm), Intake 19.39 sq. in.
Length 47.25" (1200mm), Intake 23.20 sq. in.
Length 59.05" (1500mm), Intake 26.59 sq. in.

Features -

- High Quality Materials: The Linear Shower Drain is made of 16 Gauge SS304 Stainless Steel Flange and Channel.Brushed Steel Finish protects the Linear Shower Drain from corrosion & rust.
- Easy Installation: The Shower Drain doesn’t have leveling feet. This is much more stable and makes installation easy by simply allowing you to rest the Flange on the floor edge.
- Water and Leak Proof: The Flange of the Shower Floor Drain is designed for use with all waterproofing materials including "Hot-Mop".
- Wheelchair access (ADA Compliant) & Barrier-free showers

Technical -

- Channel width: 2 3/4" (70 mm).
- Flow rate: at entrance to shower - 6.3GPM (0.4 l/s); against the wall - 9.5GPM (0.6 l/s).
- Compatible with tiles up to 10mm depth (14mm lip).
