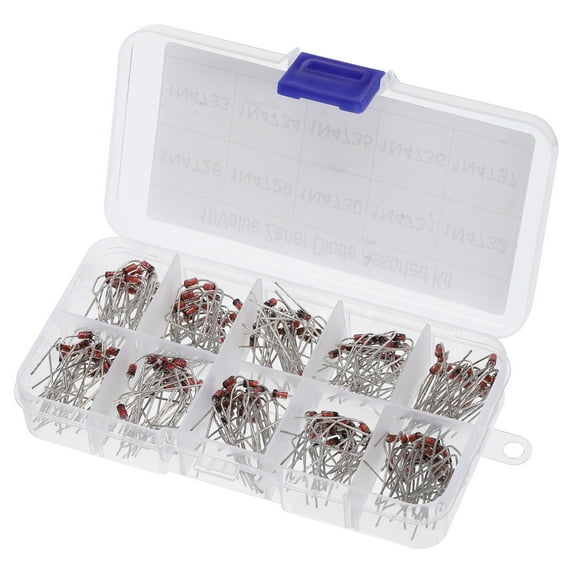

Uxcell Zener Diode Assorted Kit, 200 Pack 10 Values Element in a Box for Electrical

(No ratings yet)

Key item features

Uxcell Zener Diode Assorted Kit, 200 Pack 10 Values Element in a Box for Electrical
Size: 59x2.5mm / 2.32x0.1 inch(L*W)
Types: 1N4728(3.3V), 1N4729(3.6V), 1N4730(3.9V), 1N4731(4.3V), 1N4732(4.7V), 1N4733(5.1V), 1N4734(5.6V), 1N4735(6.2V), 1N4736(6.8V), 1N4737(7.5V)
Packing List: 200pcs x Diode (10 Types Included, Each Type has 20)

Specs

Diode type
Zener Diode
Volts
3.3 V, 3.6 V, 3.9 V, 4.3 V, 4.7 V, 5.1 V, 5.6 V, 6.2 V, 6.8 V, 7.5 V
Brand
Uxcell
Color
Black

Current price is $12.49

Price when purchased online

Free shipping
Free 30-day returns

How do you want your item?

Ships to

Arrives between Jun 1 - Jun 5

Sold and shipped by Tasharina Corp

4.074385855108747 stars out of 5, based on 31959 seller reviews(4.1)

Free 30-day returns

About this item

Product details

Zener Diodes find extensive usage in various electronic circuits. They are commonly used in voltage regulation, voltage reference generators, surge protection, signal conditioning, and voltage stability applications. These diodes are widely used in power supplies, automotive electronics, communication systems, industrial control systems, and precision measurement equipment.

Advantage
Zener Diodes offer several advantages. Firstly, they are designed to operate in reverse breakdown part, making them good for voltage regulation and protection applications. Secondly, their precise and stable breakdown voltage characteristics ensure accurate voltage clamping or reference voltage generation. Additionally, these diodes exhibit low dynamic impedance and fast response times, making them suitable for high-speed switching circuits.

Instruction
To use the Zener Diodes, choose the appropriate model from the kit based on the desired breakdown voltage required by your circuit. Connect the diode in the reverse bias configuration across the load or as per the circuit design. Ensure proper orientation and observe the maximum power dissipation limits mentioned in the data sheet.

NOTE:
When working with Zener Diodes, ensure that the operating conditions are within their specified limits to prevent damage or improper functionality. Take necessary precautions to handle electrostatic discharge (ESD) and avoid excessive heat during soldering or operation.

Uxcell Zener Diode Assorted Kit, 200 Pack 10 Values Element in a Box for Electrical
Size: 59x2.5mm / 2.32x0.1 inch(L*W)
Types: 1N4728(3.3V), 1N4729(3.6V), 1N4730(3.9V), 1N4731(4.3V), 1N4732(4.7V), 1N4733(5.1V), 1N4734(5.6V), 1N4735(6.2V), 1N4736(6.8V), 1N4737(7.5V)
Packing List: 200pcs x Diode (10 Types Included, Each Type has 20)

info:

We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

Specifications

Diode type

Zener Diode

Volts

3.3 V, 3.6 V, 3.9 V, 4.3 V, 4.7 V, 5.1 V, 5.6 V, 6.2 V, 6.8 V, 7.5 V

Brand

Uxcell

Color

Black
