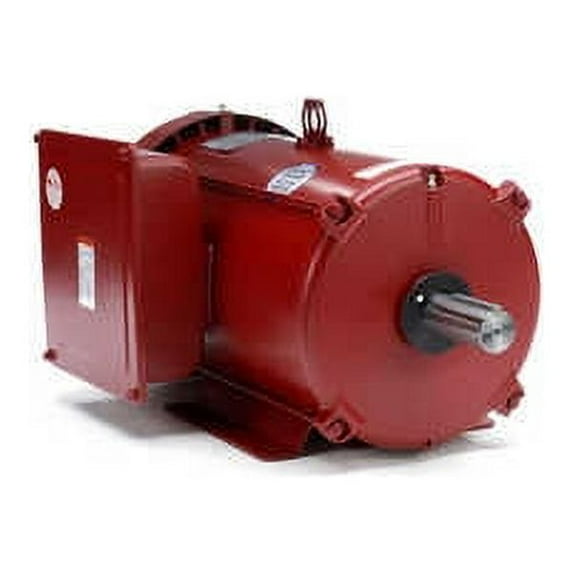

5 hp 1740 RPM 215T Frame 230volts (Farm Duty) Extra High Torque Leeson Electric Motor # 141433
Key item features
- 5 hp 1740 RPM, 22.6 amps, 230 Volts 60hz.
- NEMA 215T Frame Keyed Shaft 1 3/8" Diameter x 3 3/8"
- TEFC Totally Enclosed Fan cooled - Service Factor = 1.15; Reversible
- Produce up to 400% starting torque
- One Year Manufacture Warranty
Leeson Farm Duty Extra High Starting Torque, Capacitor Start/Capacitor Run motor. Overall Length = 18.71" Excellent motor for any application requiring a 5 hp motor. This Totally Enclosed motor is Excellent for woodworking machines and other industrial machines where the motor is exposed to saw dust, dirt, oil and other partics in the air that will damage the motor. Motor also has manual overload protection to prevent damage in an overload situation. Mounting is standard NEMA 215T frame, flat base with 6 holes. Farm duty motors have many extra features over standard motors such as double sealed bearings with Exxon grease for a temperature range of -20F to +350F. Rubber boot over reset button provides additional protection. Gasketed junction box and capacitor covers. 1 Year Manufacture Warranty. Motor weight 119 lbs. SHIPS BY TRUCK - Should ship to business address.
Replaces 140203.00
Specs
- Horsepower5 HP
- Electric motor typeAC Motor
- Volts230 V
- Maximum motor speed1800 rpm
- Amps22.6 Amps
- BrandLeeson
