Hero image 0 of Corsair CX Series 550W 80+ Bronze Power Supply, 0 of 5

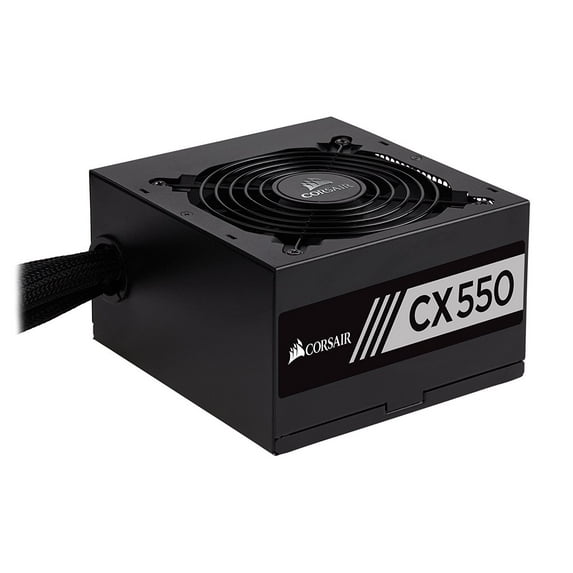

Corsair CX Series 550W 80+ Bronze Power Supply

Name: Corsair CX Series 550W 80+ Bronze Power Supply
Brand: Corsair
SKU: 288241345
Price: 92.6 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

|1 rating

Corsair CX Series 550W 80+ Bronze Power Supply Corsair CX Series 550W 80 Bronze Power Supply Corsair CX Series 550W 80 Bronze Power Supply Corsair CX Series 650W 80 Bronze Power Supply Corsair CX Series 650W 80 Bronze Power Supply

Size:5.50" x 5.50" x 3.40"-Out of stock

Key item features

Low noise 80 PLUS Bronze certified efficiency and clever fan design allow for little or no detectable fan noise during regular operation.
Good looks The matte black finish, black-sleeved cables and black connectors help give your system a restrained, high-tech look.
Reliable and compatible CX Series is built and tested to strict standards for trouble-free installation and smooth operation.
Corsair engineering and quality control Every Corsair power supply is designed by our California engineering team and built to our exact specifications. The same care that goes into the design and testing of our renowned high-power enthusiast power supplies also goes into the CX Series, because you need confidence and reliability regardless of your build budget.
Ample connectors and long cables Long cables make CX Series suitable for installation even in full-height tower cases, and the generous cable count allows you to power multiple components and storage devices.
Large-diameter, thermally controlled fan Once you’ve installed a PSU, you shouldn’t have to think about it. Employing a thermally controlled fan makes the CX Series virtually silent at idle, and the large diameter reduces noise even when you’re pushing your system hard.
Package contents CX Series ATX Power Supply Power Cord x4 Mounting Screws Pack of Zip-ties Warranty Document
Compatibility Supports ATX12V 2.4/2.3/2.2/2.01 and EPS12V 2.92 standards
Active PFC with full range AC input (100-240 VAC)
120mm thermally controlled rifle bearing fan
Engineered to meet maximum power output at a 40°C temperature rating.
Over-voltage protection, under-voltage protection, short circuit protection, over power protection, and over temperature protection provide maximum safety to your critical system components.
Safety and Agency Approvals: FCC, ICES, CE, UL, cUL, RCM, TÜV, CB, CCC, BSMI, EAC, RoHS, WEEE, KC
Weight 1.73kg MTBF 100,000 hours 80 Plus Bronze Power 550 Watts Fanless mode No Fan bearing technology Rifle Fan size (mm) 120mm C-Link Digital No Continuous output rated temperature (°C) 40°C
Dimensions 150mm x 140mm x 86mm Modular No Sleeved cables Sleeved ATX Connector 1 EPS Connector 1 Four Pin Peripheral Connector 4 PCIe Connector 2 SATA Connector 5 Plug Type NA
Corsair CX550 ATX Power Supply AC Input Rating DC Output Rating AC Input: 100V - 240V DC Output +3.3V +5V +12V -12V +5CXB Current: 6.3 - 3.15A Max Load 25A 20A 45.8A 0.8A 3.0A Frequency: 47Hz - 63Hz Maximum Combined Wattage 120W 549.6W 9.6W 15W Total Power: 550W

Specs

Computer power supply form factor
Internal
Features
Non-Modular
Brand
Corsair
Input voltage
120 V AC, 230 V AC
Internal/external
Internal
Size
5.50" x 5.50" x 3.40"

Current price is $92.60

Price when purchased online

Out of stock

How do you want your item?

Out of stock

Report an issue with this seller

About this item

Product details

An ideal choice for value-conscious system builders and upgraders CX Series power supply units provide modern power supply technologies and 80 PLUS Bronze efficiency at a competitive price point. It is black with black cable sleeving and connectors and a thermally controlled 120mm fan. The LLC resonant topology with DC to DC ensures complete compatibility with all modern day PCs.

Low noise 80 PLUS Bronze certified efficiency and clever fan design allow for little or no detectable fan noise during regular operation.
Good looks The matte black finish, black-sleeved cables and black connectors help give your system a restrained, high-tech look.
Reliable and compatible CX Series is built and tested to strict standards for trouble-free installation and smooth operation.
Corsair engineering and quality control Every Corsair power supply is designed by our California engineering team and built to our exact specifications. The same care that goes into the design and testing of our renowned high-power enthusiast power supplies also goes into the CX Series, because you need confidence and reliability regardless of your build budget.
Ample connectors and long cables Long cables make CX Series suitable for installation even in full-height tower cases, and the generous cable count allows you to power multiple components and storage devices.
Large-diameter, thermally controlled fan Once you’ve installed a PSU, you shouldn’t have to think about it. Employing a thermally controlled fan makes the CX Series virtually silent at idle, and the large diameter reduces noise even when you’re pushing your system hard.
Package contents CX Series ATX Power Supply Power Cord x4 Mounting Screws Pack of Zip-ties Warranty Document
Compatibility Supports ATX12V 2.4/2.3/2.2/2.01 and EPS12V 2.92 standards
Active PFC with full range AC input (100-240 VAC)
120mm thermally controlled rifle bearing fan
Engineered to meet maximum power output at a 40°C temperature rating.
Over-voltage protection, under-voltage protection, short circuit protection, over power protection, and over temperature protection provide maximum safety to your critical system components.
Safety and Agency Approvals: FCC, ICES, CE, UL, cUL, RCM, TÜV, CB, CCC, BSMI, EAC, RoHS, WEEE, KC
Weight 1.73kg MTBF 100,000 hours 80 Plus Bronze Power 550 Watts Fanless mode No Fan bearing technology Rifle Fan size (mm) 120mm C-Link Digital No Continuous output rated temperature (°C) 40°C
Dimensions 150mm x 140mm x 86mm Modular No Sleeved cables Sleeved ATX Connector 1 EPS Connector 1 Four Pin Peripheral Connector 4 PCIe Connector 2 SATA Connector 5 Plug Type NA
Corsair CX550 ATX Power Supply AC Input Rating DC Output Rating AC Input: 100V - 240V DC Output +3.3V +5V +12V -12V +5CXB Current: 6.3 - 3.15A Max Load 25A 20A 45.8A 0.8A 3.0A Frequency: 47Hz - 63Hz Maximum Combined Wattage 120W 549.6W 9.6W 15W Total Power: 550W

info:

We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

Specifications

Computer power supply form factor

Internal

Features

Non-Modular

Brand

Corsair

Input voltage

120 V AC, 230 V AC

Warranty

Warranty information

3 YEAR

Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
