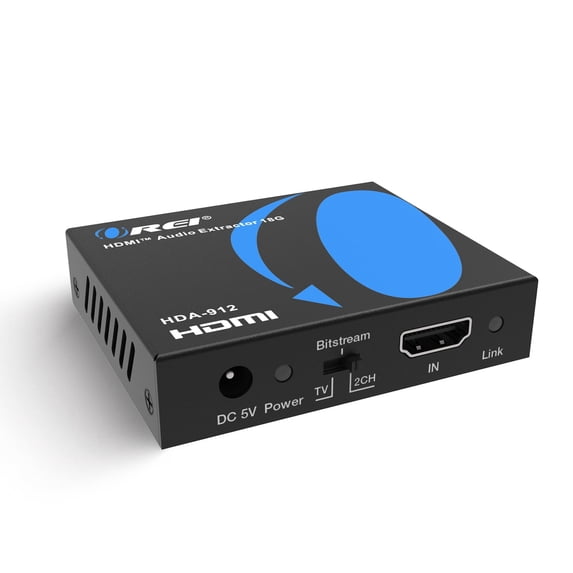

OREI HDMI UltraHD 4K @ 60Hz Audio Extractor Converter - SPDIF + 3.5mm Output (HDA-912)
Key item features
- Audio Extraction: Extracts audio from HDMI sources and converts to Optical S/PDIF or 3.5mm stereo output.
- High Resolution: Supports video resolutions up to 4K @ 60Hz (YUV 4:4:4), 4K @ 30Hz, 1080P @ 120Hz, and 1080P 3D @ 60Hz.
- Audio Formats: Compatible with LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, and DTS:X.
- HDMI Compliance: HDMI 2.0b (18Gbps), HDCP 2.2, and DVI compliant with CEC Bypass; no ARC support.
- Durable Design: Heavy-duty metal enclosure for protection and efficient heat dissipation; compact size for easy installation.
- Global Power Supply: Includes 100-240V 50/60Hz auto-switching power supply for worldwide use.
- Package Contents: Comes with OREI HDA-912 Audio Extractor, AC power adapter, and user manual.
Specs
- CompatibilityHDMI compliant source
- ConnectionHDMI
- ColorBLACK
- MaterialMetal
- Input/output quantity1
- Input/output directionInput, Output
- Free shipping
Free 30-day returns
How do you want your item?
Try 30 days of Walmart+ for just $1!
About this item
Product details
features:
-video resolutions up to 4k@50/60hz (yuv 4:4:4) and 2K@60Hz
-hdmi 2.0 (18gbps), hdcp 2.2 and dvi compliant
-extracts hdmi audio to multi-channel optical (spdif) or l/r analog audio
-optical audio supports lpcm 2ch, dobly digital 2/5.1ch, dts 2/5.1ch
-supports hdmi high bit rate audio pass through
-audio sample rates up to 192khz
-10bit hdr (high dynamic range) pass through
-supports cec bypass
package includes:
1 x orei hda-912 audio extractor
1 x ac power adapter
1 x user manual
SKU:ADIB07BHYXVTY
- HDA-912 Audio Extractor - designed to extract audio from any HDMI compliant source and converts it to Optical S/PDIF or high-quality stereo 3.5 mm audio output | Input: 1x HDMI, Output: 1x HDMI, 1x L/R Audio Out, 1x Optical Out (S/PDIF)
- Supported Resolution: Video Pass-through Up to 4K @ 50/60Hz (YUV4:4:4), 4K @ 30Hz, 1080P @ 120Hz and 1080P 3D @ 60Hz. Supported Audio: LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
- Supports HDMI High Bit Rate(HBR) audio pass through & CEC Bypass| HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant, NO ARC SUPPORT
- Heavy-duty cool metal enclosure protects the insides and keeps the unit cool by aiding in quick heat absorption and dissipation; Compact in size for easy plug & play installation
- Includes 100-240 50/60 Hz auto switching power supply for use anywhere in the world, HDA-912 Audio Extractor with User Manual, Lifetime OREI Tech Support & 12-Month Manufacturer's Warranty
Specifications
Brand
Compatibility
Connection
Color
Warranty
Warranty information
Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
Warnings
Check out these related products
OREI HDMI 18Gbps Audio Extractor With Audio Downmix (HDA-913) $89.99
$8999current price $89.99OREI HDMI 18Gbps Audio Extractor With Audio Downmix (HDA-913)
OREI 4K HDMI Signal Manager Supports HDMI 2.0, HDCP 2.3 - Downscale from 4K to 1080p (XD-3000) $39.99
$3999current price $39.99OREI 4K HDMI Signal Manager Supports HDMI 2.0, HDCP 2.3 - Downscale from 4K to 1080p (XD-3000)
4K HDMI Matrix Switch 2 X 2 by Orei Switcher 18G UltraHD Supports Upto 4K @ 60Hz & 1080P IR EDID HDCP 2.- Remote Control (UHDS-202) $49.99
$4999current price $49.994K HDMI Matrix Switch 2 X 2 by Orei Switcher 18G UltraHD Supports Upto 4K @ 60Hz & 1080P IR EDID HDCP 2.- Remote Control (UHDS-202)
Monoprice Blackbird 2x2 HDMI Matrix With Audio Extraction, HDMI 2.1, HDCP 2.3, Connect Two 8K60 Sources to Two 8K60 Monitors and Send Content From Either Source To Either Or Both Monitors $127.99 Was $159.99
$12799current price $127.99, Was $159.99$159.99Monoprice Blackbird 2x2 HDMI Matrix With Audio Extraction, HDMI 2.1, HDCP 2.3, Connect Two 8K60 Sources to Two 8K60 Monitors and Send Content From Either Source To Either Or Both Monitors
OREI 1x2 HDMI Extender Splitter Over CAT6/7 Ethernet Cable Up to 165 ft - 1 in 2 Out, 1080P, PoC, IR Control, EDID, HDMI Loop Out (HD12-EX165-K), 2 Channel Transmission $129.99
$12999current price $129.99OREI 1x2 HDMI Extender Splitter Over CAT6/7 Ethernet Cable Up to 165 ft - 1 in 2 Out, 1080P, PoC, IR Control, EDID, HDMI Loop Out (HD12-EX165-K), 2 Channel Transmission
OREI HDMI Extender Over Single CAT5e/CAT6 Cable One to Many 1080P With IR Remote - Up to 330 Ft - ProLNK Tecnhology (Receiver Only) $39.99
$3999current price $39.99OREI HDMI Extender Over Single CAT5e/CAT6 Cable One to Many 1080P With IR Remote - Up to 330 Ft - ProLNK Tecnhology (Receiver Only)
OREI HDBaseT 4K 60Hz HDMI Extender over Cat5e / 6 Ethernet LAN Cable - up to 400ft - IR, CEC, RS-232, PoC $129.99
$12999current price $129.99OREI HDBaseT 4K 60Hz HDMI Extender over Cat5e / 6 Ethernet LAN Cable - up to 400ft - IR, CEC, RS-232, PoC
Similar items you might like
Based on what customers bought

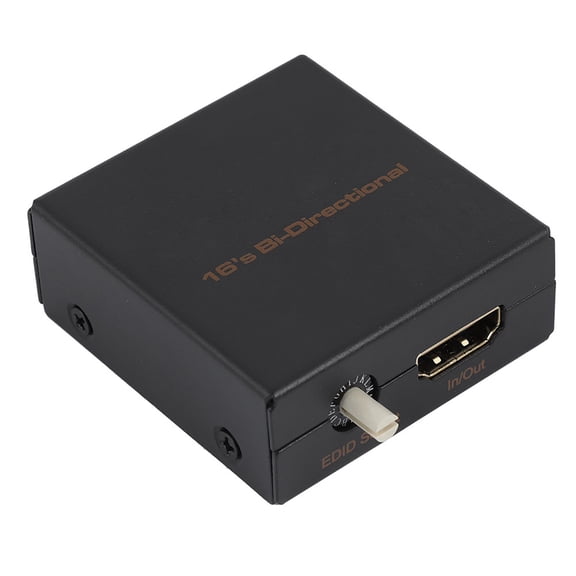

HDTV-compatible EDID Management Manager 4K 60hz Emulator HDCP2.2 18G For Home Theater Multiple Channel $39.06
$3906current price $39.06HDTV-compatible EDID Management Manager 4K 60hz Emulator HDCP2.2 18G For Home Theater Multiple Channel
HDMI Dummy Adapter - Virtual Plug Headless Emulator 4K@60Hz $14.99
$1499current price $14.99HDMI Dummy Adapter - Virtual Plug Headless Emulator 4K@60Hz
Good HD female to VGA Converter Adapter 1080P With Audio Cable For PC TV $18.99
$1899current price $18.99Good HD female to VGA Converter Adapter 1080P With Audio Cable For PC TV

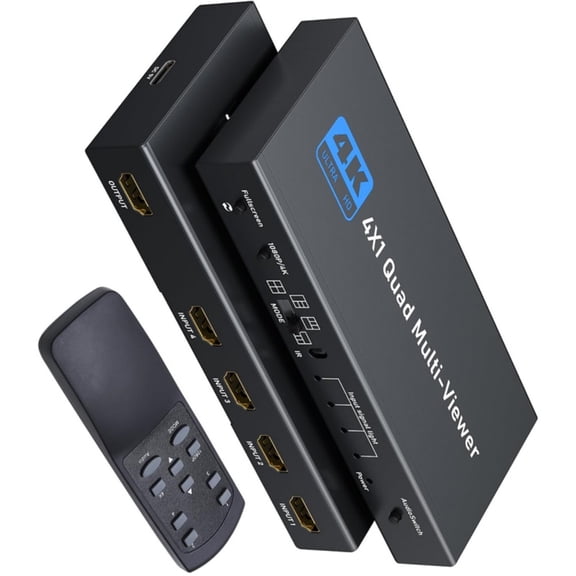

RAPOBRIX 1080p HDMI 4x1 Multi Viewer - Quad Screen Switch with Remote, 6 Modes $31.99
