Rear Factory Speaker Replacement for 1995-99 Chevrolet Chevy Monte Carlo Autotek
Key item features
- Package Includes: (1) Pair Autotek ATS693 6x9" 800 Watt 3-Way Car Audio ATS Series Coaxial Speakers. (1) Metra 72-4568 Speaker Connector Adapter Harness For 1984-2013 Select GM Vehicles. : Pair Autotek ATS693 6x9" 800 Watt 3-Way Car Coaxial Speakers. RMS Power Handling: 200 Watts. Peak Power Handling: 400 Watts. Speaker Impedance: 4 Ohms. Speaker Type: Full-Range Speaker. Frequency Response: +/- 3db: 46hz-20khz. Sensitivity (1 Watt/1 Meter): 88db. Crossover Point: 1k Hz + 3k
- Crossover Slope: 12db. Mounting Diameter/Cut Out: 8.64 X 5.98. Outside Diameter: 10.35 X 7.20. Mounting Depth/Chassis Depth: 3.35. Product Dimensions: 14.25 X 11.75 X 5.5 In. Product Weight 6.15 Lbs. Tweeter Dome Material: Neo-Mylar Soft Dome Tweeter, Impact Resistant Tweeter Elements. Surround: UV Resistant Rubber Surround Moisture Resistant Rubber Surround With High Mid-Bass Impact
- Cone: Silver Alpha-Cellulose Polypropylene Cones - Treated Pressed Paper Cone. Produces Musical Midrange And Bass Tones While Remaining Light Weight. Surround / Cone Coupling: High Temperature Adhesive. The Cone/Surround Connection Utilizes A High Temp Adhesive Which Assure The Cone And Surround Do Not Separate In High Power Uses Or Extremes Of Weather. Gasket: Textured Abs Assures A Ridged Linear Seal To The Mounting Surface
- Tinsel Leads: Braided Highly Conductive While Remain Flexible During High Power Applications. Voice Coil: Pure Copper Creates Strong Magnetic Field With A Very Thin Extrusion. Voice Coil Former: Kapton, Lightweight And Efficiently Dissipates Heat. Spider: Epoxy Infused Natural Fiber Allows Flexibility While The Epoxy Which Gives Strength During The Manufacturing Process. Cooling System: Over-Coil, Air Is Exchanged Over The Voice Coil Through The Spider
- Crossover Type: Passive Butterworth, Smooth Transition Of Frequencies From Midrange/Midbass To The Tweeter Element. Crossover Special: 6db Internal Integrated Into The Design To Assure Smooth Midrange To Tweeter Frequency Transitions. Frame: Anti-Resonant Stamped Steel Frame. Very Strong With Minimal Harmonics Or Distortions From Flex Or Ringing. Motor: Ferrite Magnet Creates A Strong Magnetic Field While Remaining Small Enough To Fit Nearly Every Application
Specs
- Rms power rating200 W
- Speaker elements3-Way
- Loudspeaker sensitivity88db
- Impedance4 ohm
- BrandAutotek
- ColorBlack
How do you want your item?
About this item
Product details

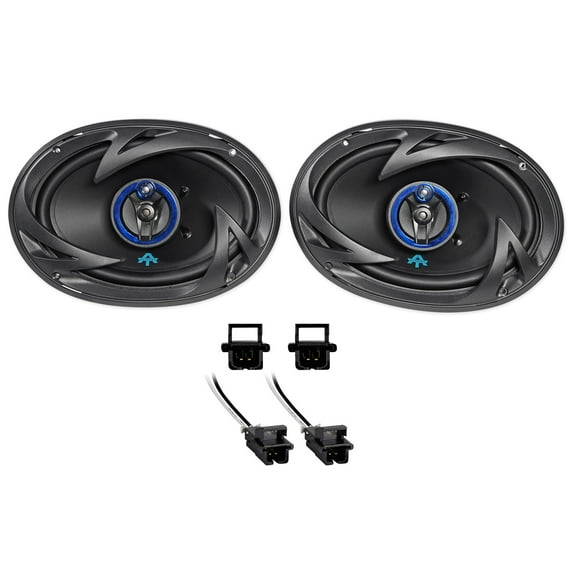

Package Includes:
(1) Pair Autotek ATS693 6x9" 800 Watt 3-Way Car Audio ATS Series CoaxialSpeakers
(1) Metra 72-4568 Speaker Connector Adapter Harness For 1984-2013 Select GMVehicles
Authorized Auto Tek Dealer!
Features of ATS693:
Pair Autotek ATS693 6x9" 800 Watt 3-Way Car Coaxial Speakers
RMS Power Handling: 200 Watts
Peak Power Handling: 400 Watts
Speaker Impedance: 4 Ohms
Speaker Type: Full-Range Speaker
Frequency Response: +/- 3db: 46hz-20khz
Sensitivity (1 Watt/1 Meter): 88db
Crossover Point: 1k Hz + 3k
Crossover Slope: 12db
Mounting Diameter/Cut Out: 8.64 X 5.98
Outside Diameter: 10.35 X 7.20
Mounting Depth/Chassis Depth: 3.35
Product Dimensions: 14.25 X 11.75 X 5.5 In
Product Weight 6.15 Lbs
Tweeter Dome Material: Neo-Mylar Soft Dome Tweeter, Impact Resistant TweeterElements
Surround: UV Resistant Rubber Surround Moisture Resistant Rubber Surround WithHigh Mid-Bass Impact
Cone: Silver Alpha-Cellulose Polypropylene Cones - Treated Pressed Paper Cone.Produces Musical Midrange And Bass Tones While Remaining Light Weight
Surround / Cone Coupling: High Temperature Adhesive. The Cone/SurroundConnection Utilizes A High Temp Adhesive Which Assure The Cone And Surround DoNot Separate In High Power Uses Or Extremes Of Weather
Gasket: Textured Abs Assures A Ridged Linear Seal To The Mounting Surface
Tinsel Leads: Braided Highly Conductive While Remain Flexible During High PowerApplications
Voice Coil: Pure Copper Creates Strong Magnetic Field With A Very Thin Extrusion
Voice Coil Former: Kapton, Lightweight And Efficiently Dissipates Heat
Spider: Epoxy Infused Natural Fiber Allows Flexibility While The Epoxy WhichGives Strength During The Manufacturing Process
Cooling System: Over-Coil, Air Is Exchanged Over The Voice Coil Through TheSpider
Crossover Type: Passive Butterworth, Smooth Transition Of Frequencies FromMidrange/Midbass To The Tweeter Element
Crossover Special: 6db Internal Integrated Into The Design To Assure SmoothMidrange To Tweeter Frequency Transitions
Frame: Anti-Resonant Stamped Steel Frame. Very Strong With Minimal Harmonics OrDistortions From Flex Or Ringing
Motor: Ferrite Magnet Creates A Strong Magnetic Field While Remaining SmallEnough To Fit Nearly Every Application
Connectors: Use Spade Connectors Or Solder Direct For The Best Connection
Grills: Protects The Speaker From Accidental Damage. Not Used If Speaker IsMounted Behind Vehicle Panel
Tweeter Material: Neo-Mylar Soft Dome Great Sound Quality And IncreasedReliability
Tweeter Size: 1 Inch Clear Highs While Handling Plenty Of Power Without SoundingHarsh
Tweeter Surround Material: Kapton Lightweight And Efficiently Dissipates Heat
Features:
METRA 72-4568 Speaker Connector Adapter Harness For 1984-2013 Select GM Vehicles
GM 88-Up Speaker Harness
Sold as Pair
