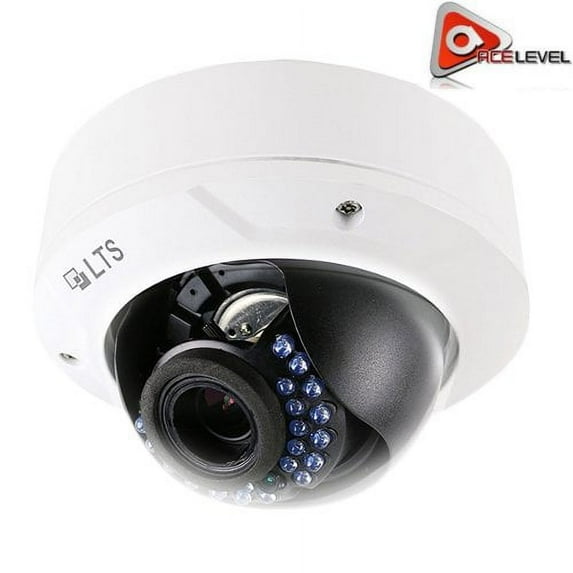

LTS, Surveillance Camera, CMIP7243-SZ, Platinum Motorized Varifocal Vandal Dome Network IP Camera 4.1MP

Camera

• Image Sensor 1/3" Progressive Scan CMOS
• Min. Illumination 0.01Lux @(F1.2,AGC ON), 0.014 Lux @(F1.4,AGC ON), 0 Lux with IR
• Shutter Speed 1/3 s to 1/10,000 s
• Slow Shutter Support
• Lens 2.8 - 12 mm @ F1.4, Motorized lens
• Lens Mount Φ14
• Day & Night IR cut filter with auto switch
• DNR 3D DNR
• Wide Dynamic Range DWDR
• Angle Adjustment Pan: 0° - 355°, Tilt: 0° - 75°, Rotation: 0° - 355°
• Compression Standard
• Video Compression H.264 / MJPEG/H.264 Zip+
• H.264 Type Main Profile
• Video Bit Rate 32 Kbps ~ 16 Mbps
• Audio Compression G.711/G.722.1/G.726/MP2L2
• Audio Bit Rate 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2)


• Max. Resolution 2688×1520
• Frame Rate 60Hz: 20fps (2688×1520), 30fps (1920×1080), 30fps(1280×720)
  50Hz: 20fps (2688×1520), 25fps(1920×1080), 25fps(1280×720)
• Image Setting Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
• BLC Support, zone configurable
• ROI Codec Support

Network

• Network Storage NAS (Support NFS,SMB/CIFS), ANR
• Alarm Trigger Motion detection, Tampering alarm, Network disconnect, IP address conflict, Storage exception
• Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
• General One-key reset, Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous access
• Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI

Interface

• Communication Interface 1 RJ45 10M/100M Ethernet port
• On-board Storage Built-in Micro SD/SDHC/SDXC slot, up to 128GB
• Reset Yes

General

• Working Temperature/Humidity  -22 °F ~ 140°F (-30 °C ~ 60 °C)
• Humidity 95% or less (non-condensing)
• Power Supply DC12V ± 10%, PoE (802.3af)
• Power Consumption Max. 5.5W (Max. 7.5 W with IR cut filter on)
• IR Range Approx. 100ft(30 meters)
• Weather Proof Ratings IP66
• Impact Protection IEC60068-275Eh, 20J; EN50102, up to IK10
• Dimensions Φ 5.5" x 3.9" (Φ 140 x 99.9mm)
