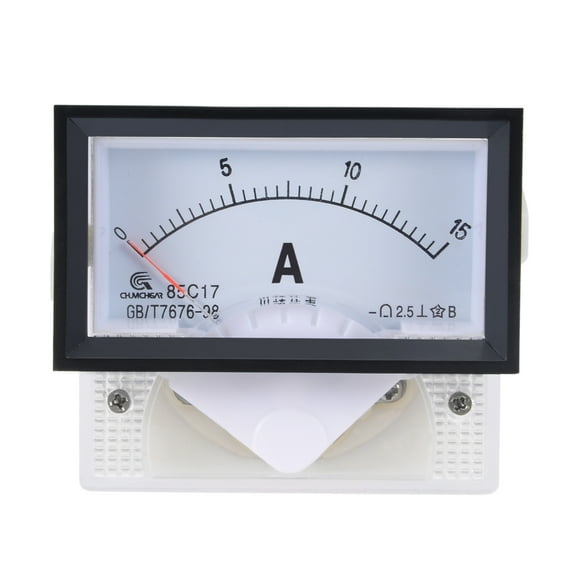

85C17 Analog Current Panel Meter DC 15A Ammeter Ampere Tester Gauge 1 PCS

Note:
This ammeter need to work with a 30A75mV shunt, which is not included here.
If the pointer is not in the 0 position, please use the 0-position adjuster on the cover to adjust the needle to 0 position.
The device should not be knocked or shaken.
Measures amper range of 0-15A with accuracy of Class 2.5.
Clear and easy to read scale and a button for fine tuning the dial.
Needle Ampere Panel Meter for electronic applications, auto circuit or other Voltage measurement devices.


Specifications:
Product Name : Analog Amperemeter
Model : 85C17-A
Measuring Ampere Range : DC 0-15A
Accuracy : Class 2.5
Work Temperature : -20~+ 50C
Relative Humidity : ≤85%
Meter Panel Size (Approx) : 2.7 x 1.5 x 2.4 inch / 70 x 40 x 61 mm(L*W*T)
Mount Size : 2.6 x 1.4 inch / 67 x 37 mm
Net Weight : 75g( oz)
Color : White

Package Include:
1 x Analog Amperemeter
Several Installing Parts
Not included 30A75mV shunt
