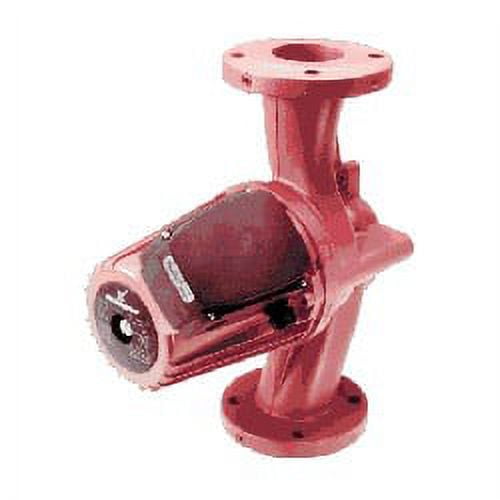

Grundfos 96402730 UPS 200 Series 3-Speed Circulator Pump UPS 32-160 F - 625W, 115V

The UPS 200 Series 3-Speed Circulator Pump (Model UPS 32-160 F) is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid. In order to avoid problems in connection with disposal, great importance has been attached to using as few different materials as possible. The pump is characterized by: 3-speed motor, ceramic radial bearings, carbon axial bearings, stainless steel rotor can, bearing plate and rotor cladding, aluminum alloy stator housing, cast iron pump housing and stator with built-in thermal switch. The motor is a 1-phase motor. The pump is supplied with a standard module in the terminal box. The standard module is to be connected to the main supply via external contactor. Speed Number: 3. Head Max: 52.5 ft. Approvals on Nameplate: CUL. Model: C. Power Input in Speed 1: 0.7443 HP. Power Input in Speed 2: 600W. Maximum Power Input: 625W. Main Frequency: 60 Hz. Rated Voltage: 1 x 115V. Flange Standard: USA Oval. Type of Connection: F. Pipe Connection: GF 40/43. Pressure Stage: 145 PSI. Port-To-Port Length: 13.5 in.
