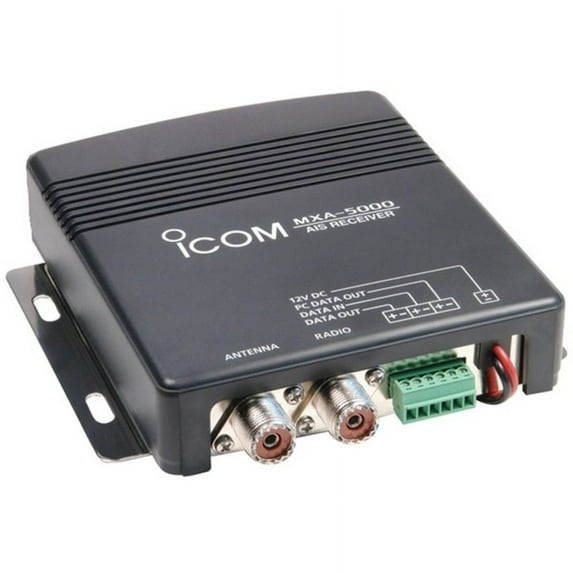

Hero image 0 of MXA5000 01 Dual Channel AIS Receiver NMN, 0 of 2
MXA5000 01 Dual Channel AIS Receiver NMN
(No ratings yet)
Key item features
Advanced Collision Avoidance with Real-Time Vessel Traffic Information
Dual channel receive capability
The MXA-5000 receives both Ch. 87B (161.975MHz) and Ch. 88B (162.025MHz) simultaneously. This dual channel receive makes the MXA-5000 more flexible for obtaining AIS information from AIS transponders that operate on only one channel. In addition, the MXA-5000 also receives both Class A and Class B AIS data.
Dual mode data output
The MXA-5000 has two data output. One is RS-422 for connection with equipment such as marine radar or GPS chart plotter. Those equipments which accept the VDM sentence format will show the AIS data on the display. The second is RS-232C for PC connection. When using with AIS plotter software*, the MXA-5000 allows you to monitor other vessel traffic on your PC.
*Not supplied from Icom.
Built-in antenna splitter to share one antenna
The MXA-5000 can be installed between a VHF antenna and a VHF radio. While receiving a VHF radio signal*, the MXA-5000 receives AIS data. When you transmit from the connected VHF radio, the Tx signal bypasses the MXA-5000 to protect the internal circuit.
*Insertion loss : 3.5dB (approx.)
GPS data multiplex
When connected a GPS receiver to the MXA-5000, GPS position information such as RMC, GGA, GNS and GLL formats can be multiplexed with AIS data (VDM format) and simplifies wiring.
Compact size and light weight body
The MXA-5000 is only 132(W)X34(H)X155(D)* mm and weighs only 400g* for easy and flexible installation.
*Mounting bracket is not included.
What is AIS?
Icom's MXA-5000 AIS (Automatic Identification System) receiver will pick up real- time transmissions from vessels that use an AIS transporter. Such transponders are now required for SOLAS vessels by SOLAS regulations.
The AIS transponder sends accurate navigation information such as:
Dual channel receive capability
The MXA-5000 receives both Ch. 87B (161.975MHz) and Ch. 88B (162.025MHz) simultaneously. This dual channel receive makes the MXA-5000 more flexible for obtaining AIS information from AIS transponders that operate on only one channel. In addition, the MXA-5000 also receives both Class A and Class B AIS data.
Dual mode data output
The MXA-5000 has two data output. One is RS-422 for connection with equipment such as marine radar or GPS chart plotter. Those equipments which accept the VDM sentence format will show the AIS data on the display. The second is RS-232C for PC connection. When using with AIS plotter software*, the MXA-5000 allows you to monitor other vessel traffic on your PC.
*Not supplied from Icom.
Built-in antenna splitter to share one antenna
The MXA-5000 can be installed between a VHF antenna and a VHF radio. While receiving a VHF radio signal*, the MXA-5000 receives AIS data. When you transmit from the connected VHF radio, the Tx signal bypasses the MXA-5000 to protect the internal circuit.
*Insertion loss : 3.5dB (approx.)
GPS data multiplex
When connected a GPS receiver to the MXA-5000, GPS position information such as RMC, GGA, GNS and GLL formats can be multiplexed with AIS data (VDM format) and simplifies wiring.
Compact size and light weight body
The MXA-5000 is only 132(W)X34(H)X155(D)* mm and weighs only 400g* for easy and flexible installation.
*Mounting bracket is not included.
What is AIS?
Icom's MXA-5000 AIS (Automatic Identification System) receiver will pick up real- time transmissions from vessels that use an AIS transporter. Such transponders are now required for SOLAS vessels by SOLAS regulations.
The AIS transponder sends accurate navigation information such as:
- Static information - vessel call sign, name MMSI number, dimensions and type
- Voyage-related information - draft, cargo type, destination and estimated time of arrival
- Dynamic information - time in universal time, coordinated, latitude/longitude position, course over ground, speed over ground, heading, rate of turn and navigational status
Specs
- Vehicle modelMXA-5000
- BrandIcom America
- ColorMulticolor
- Weight1.65 Pounds
Current price is USDSee price in cart
Price when purchased online
Out of stock
How do you want your item?
Out of stock
About this item
Product details
Icom MXA5000 01 Dual Channel AIS Receiver NMN
Advanced Collision Avoidance with Real-Time Vessel Traffic Information
Dual channel receive capability
The MXA-5000 receives both Ch. 87B (161.975MHz) and Ch. 88B (162.025MHz) simultaneously. This dual channel receive makes the MXA-5000 more flexible for obtaining AIS information from AIS transponders that operate on only one channel. In addition, the MXA-5000 also receives both Class A and Class B AIS data.
Dual mode data output
The MXA-5000 has two data output. One is RS-422 for connection with equipment such as marine radar or GPS chart plotter. Those equipments which accept the VDM sentence format will show the AIS data on the display. The second is RS-232C for PC connection. When using with AIS plotter software*, the MXA-5000 allows you to monitor other vessel traffic on your PC.
*Not supplied from Icom.
Built-in antenna splitter to share one antenna
The MXA-5000 can be installed between a VHF antenna and a VHF radio. While receiving a VHF radio signal*, the MXA-5000 receives AIS data. When you transmit from the connected VHF radio, the Tx signal bypasses the MXA-5000 to protect the internal circuit.
*Insertion loss : 3.5dB (approx.)
GPS data multiplex
When connected a GPS receiver to the MXA-5000, GPS position information such as RMC, GGA, GNS and GLL formats can be multiplexed with AIS data (VDM format) and simplifies wiring.
Compact size and light weight body
The MXA-5000 is only 132(W)X34(H)X155(D)* mm and weighs only 400g* for easy and flexible installation.
*Mounting bracket is not included.
What is AIS?
Icom's MXA-5000 AIS (Automatic Identification System) receiver will pick up real- time transmissions from vessels that use an AIS transporter. Such transponders are now required for SOLAS vessels by SOLAS regulations.
The AIS transponder sends accurate navigation information such as:
Dual channel receive capability
The MXA-5000 receives both Ch. 87B (161.975MHz) and Ch. 88B (162.025MHz) simultaneously. This dual channel receive makes the MXA-5000 more flexible for obtaining AIS information from AIS transponders that operate on only one channel. In addition, the MXA-5000 also receives both Class A and Class B AIS data.
Dual mode data output
The MXA-5000 has two data output. One is RS-422 for connection with equipment such as marine radar or GPS chart plotter. Those equipments which accept the VDM sentence format will show the AIS data on the display. The second is RS-232C for PC connection. When using with AIS plotter software*, the MXA-5000 allows you to monitor other vessel traffic on your PC.
*Not supplied from Icom.
Built-in antenna splitter to share one antenna
The MXA-5000 can be installed between a VHF antenna and a VHF radio. While receiving a VHF radio signal*, the MXA-5000 receives AIS data. When you transmit from the connected VHF radio, the Tx signal bypasses the MXA-5000 to protect the internal circuit.
*Insertion loss : 3.5dB (approx.)
GPS data multiplex
When connected a GPS receiver to the MXA-5000, GPS position information such as RMC, GGA, GNS and GLL formats can be multiplexed with AIS data (VDM format) and simplifies wiring.
Compact size and light weight body
The MXA-5000 is only 132(W)X34(H)X155(D)* mm and weighs only 400g* for easy and flexible installation.
*Mounting bracket is not included.
What is AIS?
Icom's MXA-5000 AIS (Automatic Identification System) receiver will pick up real- time transmissions from vessels that use an AIS transporter. Such transponders are now required for SOLAS vessels by SOLAS regulations.
The AIS transponder sends accurate navigation information such as:
- Static information - vessel call sign, name MMSI number, dimensions and type
- Voyage-related information - draft, cargo type, destination and estimated time of arrival
- Dynamic information - time in universal time, coordinated, latitude/longitude position, course over ground, speed over ground, heading, rate of turn and navigational status
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it. Â
Specifications
Vehicle model
MXA-5000
Brand
Icom America
Features
Receives both Class A & B AIS transmissions, Built-in antenna splitter allows use of existing VHF antenna, Data displayed on third-party Chartplotter or Radar, NMEA 0183 Data output, 12 Volt DC operation, Class D DSC built in, Force 5 Audio built in, Filters out most surrounding ambient noises when transmitting a message, IPX8 waterproof construction, Large LCD with alpha/numeric labeled channels
Color
Multicolor
Warranty
Warranty information
2 year warranty
