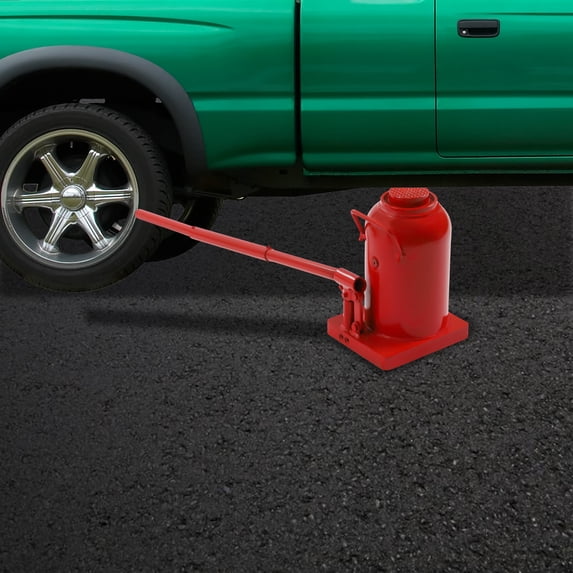

Miumaeov Hydraulic Stubby Low Profile Welded Bottle Jack 50 Ton Capacity Anti-Slip Top and Enlarged Base for Lifting Cars Trucks Heavy-Duty Machinery

Hydraulic Stubby Low Profile Welded Bottle Jack, 50T(110,231lbs) Capacity, Red

Specifications

Material: Alloy Steel

Color: Red

Process: Baking Paint

Operation Temperature: -20~45°C/-4~113°F

Body Height: 26cm/10.23in

Lifting Height: 15cm /5.9in

Adjustment Height: 6cm /2.36in

Maximum Lifting Height: 47cm /18.5in

Housing Diameter: 14cm/5.51in

Base Size: 18.4*16cm/7.24*6.29in

Product Height: 26cm/10.23in

Gross Weight: 20kg/44.44lbs

Net Weight: 17kg/37.47lbs

Loading Capacity: 50T/110,231 lbs

Packing Size: 20*17*28cm/7.87*6.69*11.02in

Package Included

1* Hydraulic Cylinder Jack

3* Levers

1* English Manual

Notes

1.Please read the operating manual completely before use. And pay particular attention to the safety instructions included.

2.This is a hydraulic jack and cannot be used for jacking or fixing for a long time.

3.It is prohibited to screw out the oil valve, otherwise the use of the product will be affected.

4.Overload operation is strictly prohibited. Please use above the hard support surface. Please do not lift the jack to the top when there is no load. If the jack cannot be lifted, please check whether the oil valve is tightened.

5.Park the vehicle on a level and hard ground before using the jack, and open the danger warning sign behind you. When the jack supports the vehicle, it is strictly forbidden to enter the vehicle bottom!

6.Observe the car chassis and put the jack inside the side frame.

7.To ensure the normal use of the jack, please keep the jack piston rod clean and lubricated.
