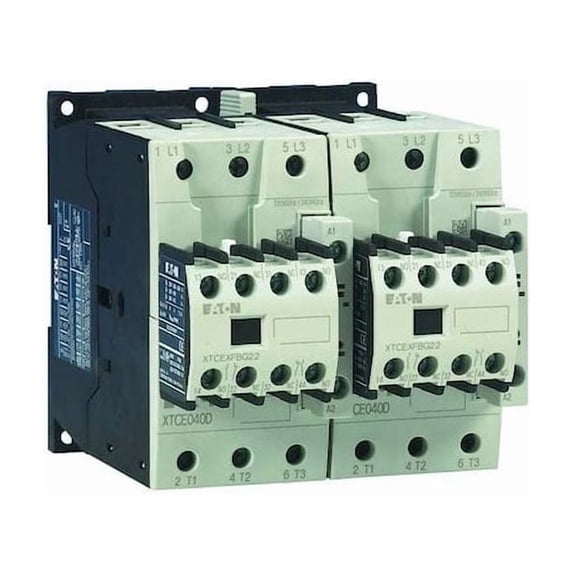

Eaton IECMagContactor, Reversing, 110/120VAC XTCR040D11A

The Eaton XT IEC Magnetic Contactor is a 3-pole reversing contactor with a 120V AC coil. It incorporates 1 normally open and 1 normally closed auxiliary contact pair and is rated for operation within the specified voltage and current ranges. - Action: intended for reversing applications when installed according to manufacturer instructions - Amperage Rating: 40A - Aux. Contact Configuration: 1NO/1NC - Auxiliary Contact Form: 1NC/1NO - Certifications: certified by relevant standards organizations, indicating compliance with applicable safety and performance standards - Coil Voltage: 120V AC - Coil Volts: 120 V AC - Compliances: CE Marked - Contact Configuration: 1 NO, 1 NC - Contactor Style: IEC - Depth: 5.79 in - Electrical Connection: Screw Terminals - Embedded Surge Suppressor: includes a surge suppression component compatible with specified electrical parameters - Enclosure NEMA Rating: does not include an enclosure; suitable for installation in appropriate enclosures or environments per applicable codes - Frame / Series / Class / Code: Frame D - Frame Size: D - Frequency: 50/60 Hz - Frequency Rating: 50-60 Hz - Full Load Amps-Inductive: 40 A - Full Load Amps-Resistive: 60 A - HP @ 1 Phase - 120V: 3 hp - HP @ 1 Phase - 230V: 7-1/2 hp - HP @ 1 Phase - 240V: 7-1/2 hp - HP @ 3 Phase - 208V: 10 hp - HP @ 3 Phase - 240V: 15 hp - HP @ 3 Phase - 480V: 30 hp - HP @ 3 Phase - 575V: 40 hp - Height: 4.33 in - IP Rating: IP20 - Includes Auxiliary Contacts: Yes - Item: IEC Magnetic Contactor - Maximum Operating Temperature: rated for operation within the specified temperature range under normal conditions - Minimum Operating Temperature: rated for operation within the specified temperature range under normal conditions - Mounting Hole Diameter: 0.16 in - Mounting Hole Distance - Height: 4.13 in - Mounting Hole Distance - Width: 1.77 in - Mounting Style: DIN Rail, Panel - NEMA Enclosure Rating: Not Rated - Number of Auxillary Contacts: 2 - Number of Poles: 3 - Overall Depth:
