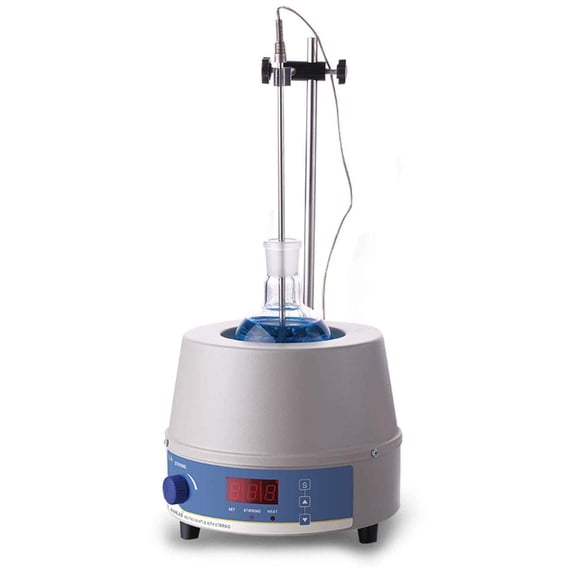

PreAsion Magnetic Stirrer Heating Mantle Heating Mantle Kit for Laboratory Heating with Temperature Control 1000ml

Main technical parameters:
Model: 98-II-C
Capacity (ml): 1000
Voltage(v): 110V
Max. use tem.: 450℃
Tem. Range: Ambient tem.～40℃
Sensor: PT100
Working mode: continuous
Power(W): 350

Introduction:
Working condition
Ambient temperature: 5~40℃;
Ambient humidity: ≤90%;
Voltage: 110V

Operation instruction:
a) Place the equipment on level worktable, put the sensor frame, and plug it into sensor block on the back of the instruments
b) Fill a liquid container in the instrument, and set the sensor in the heated liquid.
c) Use the same voltage as the machine required, and then the instrument’s screen will display the temperature of the liquid.
d) Set temperature: after press “S” ,the green button “Set” indicator light, the screen display the set temperature, and press the arrow keys to select the temperature you want to use. After setting temperature, press “S” to display the actual temperature.
e) When heated the red indicator light, lights off when not heated.
f) When temperature rose to the set temperature at the first time, it may be washed for few degrees; it will stabilize down when the temperature came down.
g) Stirring adjust: Adjust the stirring speed by turn the knob clockwise.

Usage notes:
1. Because of the surface of heat insulation material is coated with grease, in the first used shall first heat except when heating oil, will appear white smoke, shut off the power after heating to smokeless, when the temperature come down, it can normal use
2. When use the instrument should pour the liquid into the container firstly, and then put in the instrument to use.

Item included: 020378
PreAsion Magnetic Stirrer Heating Mantle Heating Mantle Kit for Laboratory Heating with Temperature Control 1000 ml
