Hero image 0 of 2.4" LCD Display Digital Oscilloscope Assembled With Case Test Clip DIY, 0 of 15

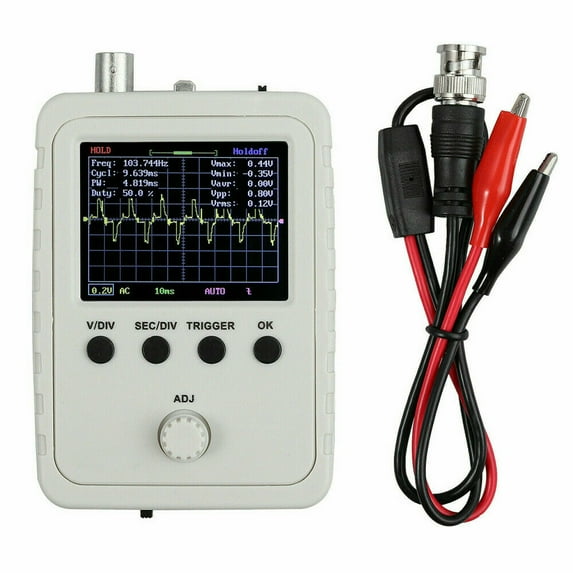

2.4" LCD Display Digital Oscilloscope Assembled With Case Test Clip DIY
(No ratings yet)
Key item features
2.4" LCD Display Digital Oscilloscope Assembled With Case Test Clip DIY
Specs
- BrandARCADORA
- Has written warrantyNo
Current price is USD$37.31
Price when purchased online
- Free shipping
Free 30-day returns
How do you want your item?
Ships to
Arrives between May 29 - Jun 4
|
Sold and shipped by YunChuangke
3.987951807228915 stars out of 5, based on 166 seller reviews(4.0)166 seller reviews
Free 30-day returns
About this item
Product details
Features:
With 1KHz / 3.3V square wave test signal source.
Save/tune out the waveform, the shutdown waveform does not disappear.
Fine workmanship and good performance.
Specifications:
Maximum real-time sampling rate: 1 MSa/s
Analog bandwidth: 0 - 200 KHz
Sensitivity range: 5 – 20 mV/div
Maximum input voltage: 50 Vpk (1X probe)
Input impedance: 1M ohms/20pF
Accuracy: 12 bits
Record length: 1024 points
Coupling modes: DC / AC / GND
Time Base Range: 500s/Div – 10us / Div
Trigger modes: Auto, normal, and single
Trigger position: Center of buffer
Supply voltage: DC 9V(8 – 10 V)
Current consumption: ~120 mA @ 9 V
Power supply: Recommend the 9V 1A power adapter, 5.5x2.1mm connector(not include)
Package includes:
1 x Fully Welded Assembled Digital Oscilloscope
1 x Alligator clip
With 1KHz / 3.3V square wave test signal source.
Save/tune out the waveform, the shutdown waveform does not disappear.
Fine workmanship and good performance.
Specifications:
Maximum real-time sampling rate: 1 MSa/s
Analog bandwidth: 0 - 200 KHz
Sensitivity range: 5 – 20 mV/div
Maximum input voltage: 50 Vpk (1X probe)
Input impedance: 1M ohms/20pF
Accuracy: 12 bits
Record length: 1024 points
Coupling modes: DC / AC / GND
Time Base Range: 500s/Div – 10us / Div
Trigger modes: Auto, normal, and single
Trigger position: Center of buffer
Supply voltage: DC 9V(8 – 10 V)
Current consumption: ~120 mA @ 9 V
Power supply: Recommend the 9V 1A power adapter, 5.5x2.1mm connector(not include)
Package includes:
1 x Fully Welded Assembled Digital Oscilloscope
1 x Alligator clip
2.4" LCD Display Digital Oscilloscope Assembled With Case Test Clip DIY
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.
Specifications
Brand
ARCADORA
Has written warranty
No
Warranty
Warranty information
Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
