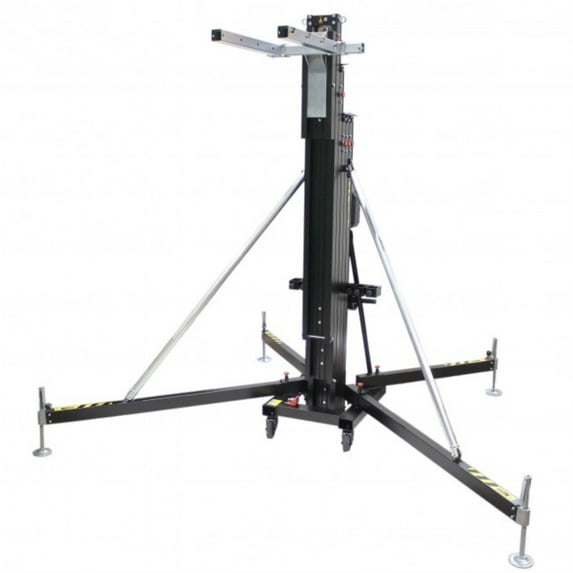

ProX XTF-FT6033 FANTEK Multipurpose Compact Front Loading Lifting Tower - 728 lb Capacity - Max Height 19.52ft | From Spain

TheProX XTF-FT6033 FANTEK Lifting Tower is Front Loading and allows raising the load from the floor, avoiding any single effort and specially designed for a reliable lifting of Line Array Systems of up to 330kg (727.5 lbs) to a maximum height of 5.95 meters / 19.52 Ft. This product is perfect to flyline arraysystems,trusses andLED screens. The compact design with castors gives theXTF-FT6033 Rigging tower easy handling and maneuverability, reducing storage space and it is the ideal solution for touring, rental and event production (concerts, events, trade fair stands, stage construction, fitting-out discos, theaters, broadcasting, TV, etc.).ThisCompact model isonly 5.64ft (1.72m) folded height.These Patented Dynamic Overlapstacking trusses (5Masts) are manufactured with extruded aluminum (Alloy: EN-AW according to 6082 T6) and TIG welded by Certified Welders for maximum safety, are specially designed to be compact when folded, reducing storage space and making it easier to handle. FANTEK towers use a reinforced steel base with outriggers that support heavy loads and high heights.During lifting, the tower telescopic mechanism lift can stop safely at any of the Pin Locking Systempositions. These pins take the load off the wire rope. Additionally,since it accomplishesmany functions, all focused on maximizing user safety.Each Dynsys system is adjusted to control the torque that is applied on the winch and, when this is exceeded, the system acts and does not allow to continue the lifting process.The WIREDRIVE is a multidirectional grooved pulley thatreduces the wire angle between the winch drumand its entry to the first mast. The steel base provides great stability when the adjustable screw-jacks are well balanced and the bubble level on the base provides accurate leveling. Always secure loads at a locking point and never on the winch alone!Use with:XTF-ATF17PA Line Array Adapter W/Hanging Ring XTF-ATF17PAM Movable Line Array Adapter XTF-ATF1DS Reversible Truss Adapter
