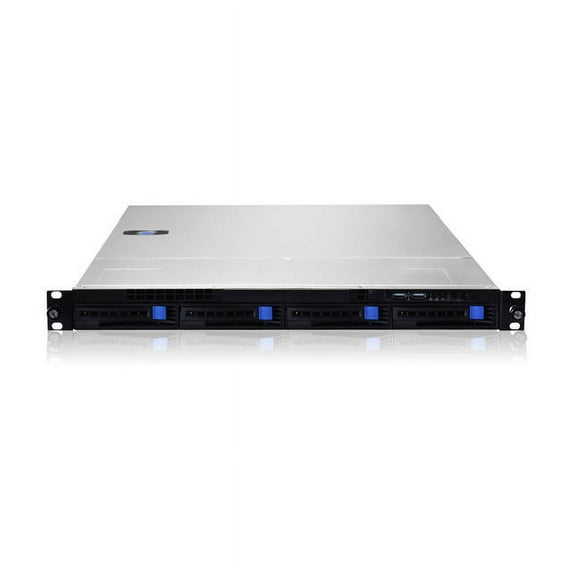

Gooxi AS101-S04S LGA1150 400W LGA1150/ DDR3 1U Rackmount Server Barebone System - RETAIL

Specifications

• Mfr Part Number: AS101-S04S
• Motherboard: G1SA-4B
• Processor: LGA1150
  • Support Intel Xeon E3-1200 v3/v4 Family/4th Generation Intel Core i3,i5,i7/  Pentium/ Celeron Processors
• Chipset: Intel Lynx point C222 PCH
• Memory: 4x 240pin DDR3-1600 DIMM Slots, ECC, Unbuffered, Max Capacity of 64GB (Support volume of 2GB, 4GB, 8GB,16GB)
• Slots: 1x PCI-Express 3.0 x16 Slot (runs at x8), 2x PCI-Express 2.0 x4 Slots (runs at x1), 1x full Height expansion slot
• SATA: 2x SATA3 Ports, 4x SATA2 Ports
• LAN: 4x Intel i210-AT Gigabit Ethernet LAN controller
• Drive Bays: 4x 3.5"/2.5" Hot-Swap SATA3/2 HDD w/ RAID
• RAID Support: Support RAID 0, 1, 5 (windows only), 10
• Ports: 3x USB 3.0 Ports (2 rear, 1 Type A), 4x USB 2.0 Ports (2 rear, 2 via header)
• Form Factor: 1U Rackmount
• Power Supply: 400W Delta DPS-400YBB
  • Input: 100-240V, 47Hz ~ 63Hz
  • Output: +12V, +5V_SB
• System Cooling: 4x 40x28 Fans
• Operating System: Windows Server 2008 R2/ 2012/ 2012 R2 (64bit), Windows SBS 2001 (64bit), Redhat Enterprise Linux Server (32bit/64bit), Suse Enterprise Linux Server (32bit/64bit),  UbuntuServer (32bit/64bit)
• Dimensions: 17.05 x 17.7 x 1.71 inch / 450.0 x 433.0 x 43.5 mm
