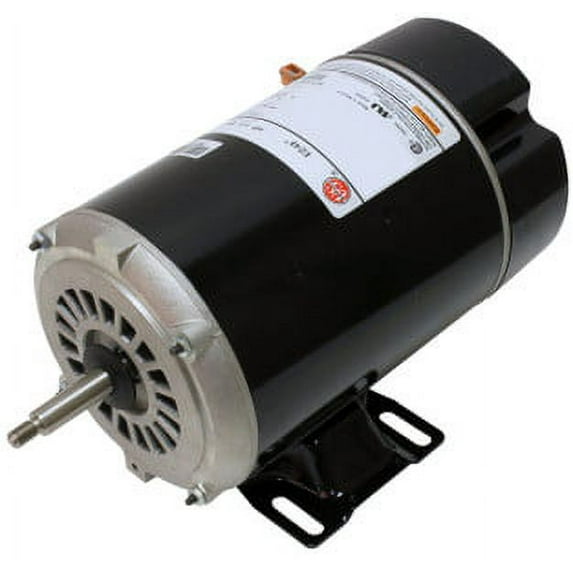

2 hp 3450 RPM 48Y Frame 230 Volts ONLY Pool / Spa Electric Motor US Electric Motor # SPH20FLC1
(No ratings yet)
Key item features
- 2 HP 3450 RPM, 10.5 amps, 230V 60hz.; 1-Speed
- Auto Overload Protection
- Non-Reversible -CCW Facing the Shaft; Ball Bearings
- 48Y Frame; Thru-Bolt mount -Rigid Base
- Stainless Steel Shaft; One Year Manufacture Warranty
Above ground swimming pool and spa motors. These are called Thru-Bolt mount motors as the pump mounts to the face of the motor with the motor thru bolts. 48Y frame motors thru bolt dimension is 5 1/8" on center measured across the shaft. Shaft is 1/2" diameter with threads on end. Motor has flat-rigid base welded to motor case. Wiring connection diagram on motor name plate. These motors are found on the Hayward Powerflo, Waterway, Aquaflo, Dynamo and many other above ground pool and spa pumps. 1 Year Manufacture Warranty. Century Equivalent BN40 BN40SS **230Volts ONLY
Specs
- BrandU.S. MOTORS
- ModelSPH20FLC1
- Pieces1
Current price is USD$254.10
Price when purchased online
Out of stock
