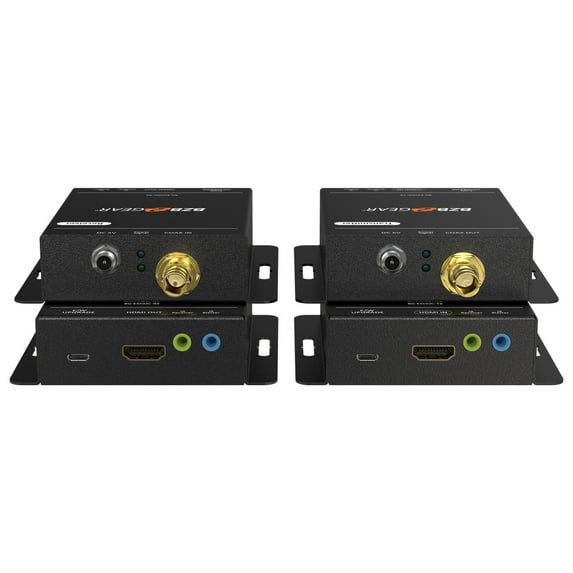

BZBGEAR 4K UHD HDMI Extender Over Single Coax Cable with Bi-directional IR
Key item features
- Stunning Visuals: Supports resolutions up to 4K@60Hz 4:4:4 and is HDMI 2.0 and HDCP 2.2 compliant, ensuring high-quality, copyright-protected content.
- Extended Reach: Extends uncompressed HDMI signals up to 363 feet (110m) over a single coaxial cable, utilizing an inexpensive and durable transmission method.
- Seamless Control: Features bi-directional IR passthrough, allowing control of distant devices without the need for a separate control system.
- Rich Audio: Supports multi-channel audio formats including Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, and LPCM 7.1 at various sampling rates.
- Secure Connectivity: Equipped with locking BNC and power connectors to prevent accidental disconnects, ensuring a stable and reliable connection.
- Robust Installation: Designed with a wall-mounting housing for easy and secure installation, and includes auto signal equalization for optimal performance.
Specs
- Maximum coverage area363 ft
- Signal repeater typeSignal Repeater
- BrandBZBGEAR
- Internal/externalExternal
- Height7"
- Piece count2
- Free shipping
Free 60-day returns
(Only one option can be selected at a time)
How do you want your item?
About this item
Product details
The BG-EXHOC is a 4K HDMI signal extender that increases the range of an HDMI input signal up to 110m (363ft) over a single coaxial cable. The use of coaxial cable provides a durable, inexpensive method of transmitting uncompressed HDMI signals over long distances.
Connectivity
The BG-EXHOC can extend HDMI signals to its maximum range with resolutions up to 4K2K@60Hz 4:4:4. The extender is also HDMI 2.0 compliant and supports HDCP 2.2/1.4 input and output. To achieve this level of quality, the unit sends the full uncompressed HDMI signal through the coaxial cable. Belden 1694A coaxial cable is recommended for maximum performance. The BG-EXHOC has a maximum data rate of 18Gbps and features automatic signal equalization.
Audio
Not only does the BG-EXHOC preserve HDMI video quality over long distances, it also maintains crisp and clear audio quality. Multi-channel audio is supported at rates of 32KHz, 44.1KHz, and 48KHz. Supported audio formats include Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, and LPCM 7.1.
Control with IR Passthrough
To help control devices across longer distances and around obstacles, the BG-EXHOC supports bi-directional IR passthrough via IR blasters and IR receivers. This allows control of distant devices without incurring the expense of a third-party control system.
TAA COMPLIANT PRODUCT. This product meets the standards of the Trade Agreement Act (TAA).
- Stunning Image Quality - Supports resolutions up to 4K@60Hz 4:4:4
- Long Range - Extend uncompressed HDMI up to 363 feet (110m)
- Compliant - HDMI 2.0 and HDCP 2.2 compliant to ensure copyright protections
- Control - Bi-Directional IR Passthrough
- Multi-Channel Audio Support - Dolby TrueHD, DTS-HD, Dolby Digital Plus, and LPCM 7.1
- Secure Connection - Locking BNC and power connectors prevent accidental disconnects
- Uncompressed HDMI over Coaxial cable transmission
- Auto signal equalization
- Wall mounting housing design for easy and robust installation
Specifications
Maximum coverage area
Signal repeater type
Brand
Internal/external
Warranty
Warranty information
Warranty url
