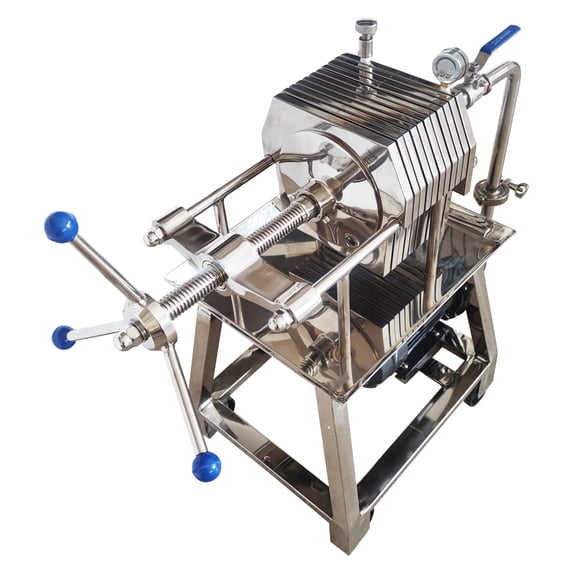

Stainless Steel Plate and Frame Press Filter Machine FT-200 Model Microporous Filter
Key item features
- Effectively increase the cross sectional area, decrease the drag of the liquid filtration, circulation, make the liquid flow to any improper blind Angle, can maintain the stability of liquid each performance, convex point filter plate makes the filter plate (membrane filter, filter paper, etc.) is not easy to damage, prolong the service life of the various about material.
- The plate frame filter press machine has good filtering quality and high efficiency. The filtering part is composed of ten layers of filter plates, which has large filtering area and large circulation.
- This filter can change different filter materials according to the requirements of different production processes of the filtered liquid (primary filtration, semi-fine filtration, fine filtration). It can increase or reduce filter materials according to the size of the production flow, and use all kinds of production needs.
- Slurry pump into each sealed filter material filter chamber, under the effect of pressure, the filtrate through filter layer and the filter cloth, filter cloth liquid outlet discharge, the filter residue is left in the filter box filter cake formation, so as to achieve the goal of solid-liquid separation.
- Can be widely used in food, beverage, water treatment, brewing, petroleum, etc, are all kinds of liquid filter, clarify the equipment, purification, processing.
Specs
(Only one option can be selected at a time)
More seller options (1)
About this item
Product details
Introduction:
Stainless steel sandwich plate frame filter, apply to concentration below 50% viscosity is low, less fluid slag content as airtight filtering to achieve purification, sterilization, clarification etc fine filtration, half fine filtration requirements, microporous membrane filter for use directly, not through the microporous membrane filter can achieve aseptic filtration purpose).
The filter has big filter area, byg flow, and the applicable scope is big, so in the pharmaceutical, chemical, food and other industries have extensive uses, used for filtering injection liquids in pharmaceutical factories, it has particularly good effects.
Parameter:
Model: FT-200
Voltage: 110V
Power: 1.1KW
Number of layer: 10
Filter Area: 0.314
Diameter: Φ200mm
Filter accuracy: 0.1-50um
Filter pressure: 0.15Mpa
Filtration speed: 2T/h
Principle:
The pressure filtration. Slurry pump into each sealed filter material filter chamber, under the effect of pressure, the filtrate through filter layer and the filter cloth, filter cloth liquid outlet discharge, the filter residue is left in the filter box filter cake formation, so as to achieve the goal of solid-liquid separation.
Applicable object properties:
Corrosion resistance, low temperature material, high requirement on material etc.
Scope of application:
Used for all kinds of suspension of the solid-liquid separation, wide application scope. Used in medicine, food, chemical, environmental protection, water treatment, pharmaceutical, light industry, dyes, textile etc.
Item Include:(188030)
FT-200 110v Stainless Steel Filter Plate And frame Press Filter Slag Machine
- Effectively increase the cross sectional area, decrease the drag of the liquid filtration, circulation, make the liquid flow to any improper blind Angle, can maintain the stability of liquid each performance, convex point filter plate makes the filter plate (membrane filter, filter paper, etc.) is not easy to damage, prolong the service life of the various about material.
- The plate frame filter press machine has good filtering quality and high efficiency. The filtering part is composed of ten layers of filter plates, which has large filtering area and large circulation.
- This filter can change different filter materials according to the requirements of different production processes of the filtered liquid (primary filtration, semi-fine filtration, fine filtration). It can increase or reduce filter materials according to the size of the production flow, and use all kinds of production needs.
- Slurry pump into each sealed filter material filter chamber, under the effect of pressure, the filtrate through filter layer and the filter cloth, filter cloth liquid outlet discharge, the filter residue is left in the filter box filter cake formation, so as to achieve the goal of solid-liquid separation.
- Can be widely used in food, beverage, water treatment, brewing, petroleum, etc, are all kinds of liquid filter, clarify the equipment, purification, processing.
