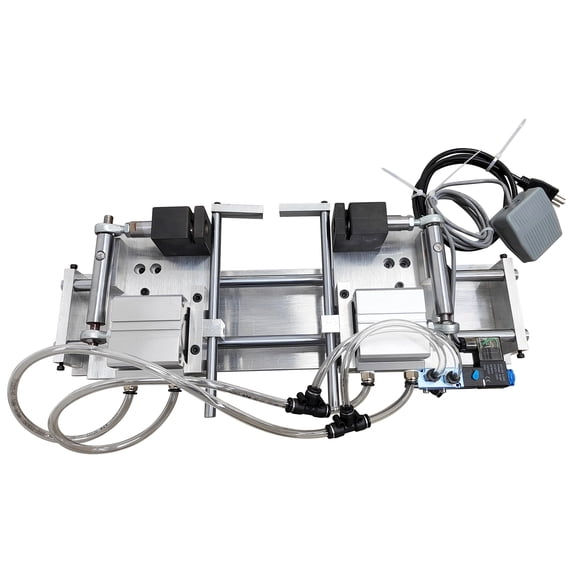

Gift Box Carton Crescent Punching Machine Specially-shaped Hole Puncher 110V
Key item features
- The double guide columns are designed to effectively ensure accurate alignment of the molds, prolong the mold life, can adapt to multiple boxes and improve the universality and flexibility.
- The punching molds can precisely punch different boxes to ensure the punching position and distance are identical, and effectively improve the product consistency and attractiveness.
- The air cylinders have a compact structure and stable power, can give a quick response to punching operation, ensure the punching process is safe and reliable, and improve the operation efficiency.
- The foot switch can liberate double hands, substantially improves the production efficiency, enhances the operation safety, reduces the risk and can be flexibly placed to adapt to different stations.
- The crescent punching machine is a processing device for punching crescent holes in the packages such as gift boxes and cartons. It can accomplish punching efficiently, precisely and stably, can be matched with multiple boxes and improves the production efficiency and product quality.
Specs
- BrandLGXEnzhuo
- Model148125
- Free shipping
Free 30-day returns
How do you want your item?
About this item
Product details
Introduction:
The crescent punching machine is a processing device for punching crescent holes in the packages such as gift boxes and cartons. It can accomplish punching efficiently, precisely and stably, can be matched with multiple boxes and improves the production efficiency and product quality. By means of precise punching, flexible adaptation and safe operation, the machine solves the problems of low efficiency and precision of manual punching and is suitable for small-batch customization and large-batch production. The crescent punching machine can be widely applied to gift box factories, packaging printing factories, DIY studios, etc.
Precaution:
Customers should prepare the air compressor by themselves.
Do not touch the running parts during operation. Do not put the hands into the machine. Do not allow people or objects to be located next to the running parts of the machine.
Operation Method:
Connect the air gauge connector of the machine to the air pipe connector, and ensure the air pressure switch is turned on.
Adjust the spacing according to the box size, and set the position of the holes to be punched.
Place the box into the mold slot of the machine, confirm that the mold aligns with the position of the tooth opening to be punched on the color box, and then press the foot pedal to complete the punching.
After use, disconnect the air gauge connector from the air pipe connector, and store the foot switch on the inner side of the machine.
Parameters:
Rated Voltage: 110V
Rated Power: 0.1KW
Speed Range: 30 PCS/MIN
Cardboard Thickness: 1-5MM(0.04-0.2 Inch)
Box Size Range: 38*38MM~380*380MM(1.5*1.5 ~ 15*15 Inches)
Cutter Diameter: 20MM(0.8IN)
Overall Dimension: 580*280*260MM(22.8*11*10.2 Inches)
Net Weight: 13.1KG(28.9LBS)
Items Included: 148125-EnzY
Gift Box Carton Crescent Punching Machine Specially-shaped Hole Puncher 110V
- The double guide columns are designed to effectively ensure accurate alignment of the molds, prolong the mold life, can adapt to multiple boxes and improve the universality and flexibility.
- The punching molds can precisely punch different boxes to ensure the punching position and distance are identical, and effectively improve the product consistency and attractiveness.
- The air cylinders have a compact structure and stable power, can give a quick response to punching operation, ensure the punching process is safe and reliable, and improve the operation efficiency.
- The foot switch can liberate double hands, substantially improves the production efficiency, enhances the operation safety, reduces the risk and can be flexibly placed to adapt to different stations.
- The crescent punching machine is a processing device for punching crescent holes in the packages such as gift boxes and cartons. It can accomplish punching efficiently, precisely and stably, can be matched with multiple boxes and improves the production efficiency and product quality.
