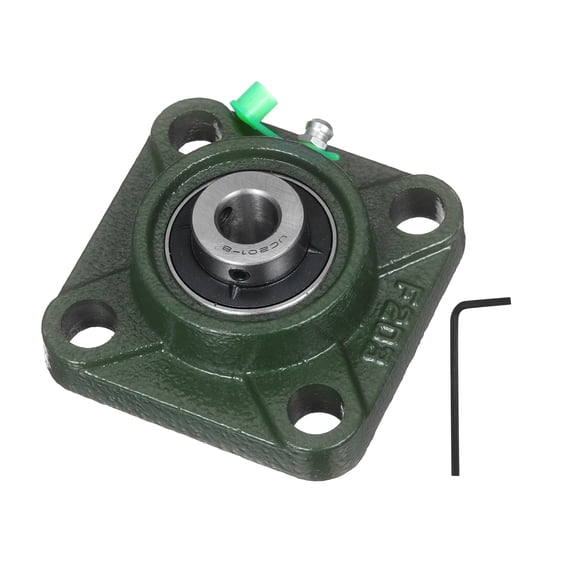

UCF201-8 Pillow Block Bearings, 1/2 inch Bore Self Alignment, Solid Cast Iron Base, Chrome Steel Square Flange Mounted Pillow Block Ball Bearing, (ABEC3)

Description:

• Material: Chrome steel sealed bearing and solid cast iron housing, has high hardness, good corrosion resistance
• Self-Aligning:  Pillow bearing features self-aligning, capable of compensating for misalignment between the shaft and the housing, ensuring it operates stably and quietly at a high speed.
• Bearing Insert:  The pillow block bearing uses a standard ball bearing insert, which allows for high radial loads and moderate axial loads.
• Lubrication:  The bearing is pre-lubricated with grease and ready for immediate installation. The appropriate lubricating oil can be added through a grease nipple after using it for some time.
• Application:  Commonly used in machinery and equipment, particularly in the agricultural and industrial sectors. It is designed to support rotating shafts and provide stability and smooth operation.

Tips: Tighten the set screw with a wrench before installation, and perform a second tightening after a period of operation. Normally, this type of product requires 2-3 times of screw tightening.

Specification:

• Material: Chrome Steel Sealed Bearing and Solid Cast Iron Housing
• Bearing Bore Diameter: 1/2 inch
• Mounting Hole Diameter: 11.5mm / 0.45 Inch(L x W)
• Mounting Hole Distance: 54 x 54mm / 2.13 x 2.13 Inch
• Overall Size: 75 x 75 x 31mm / 2.95 x 2.95 x 1.22 inch (L x W x H)
• Packing Content: 1 Pcs x Pillow Block Bearing, 1 Pcs x M2 wrench
