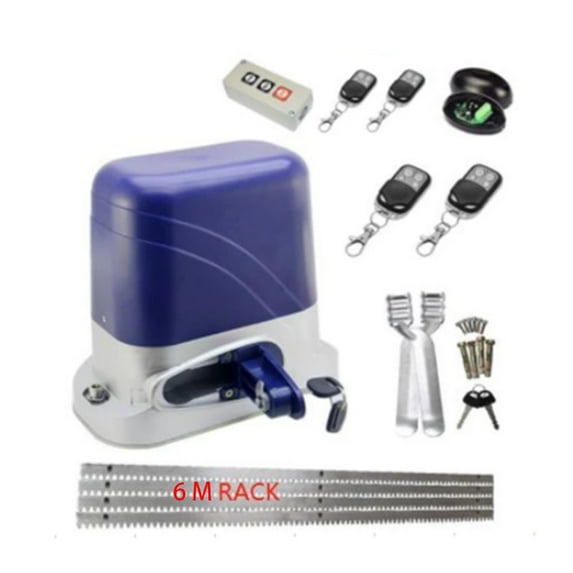

800Kg Sliding Gate Opener Drive With 6M Steel Racks Controller Touch Keypad Remote Control Electric Sliding Door Motor ,Easy to Install

Parameters:

1. Working temperature of motor:-45°C- +55°C

2. Working humidity:85%

3. Power supply:220VAC±10%/110VAC±10% 50Hz/60Hz

4. Rated power:120W

5. Output gear module:M=4

6. Output gear number:Z=16

7.Output torgue:30.0 N.m

8. Open(close) speed:v=12m/min

9. Rated speed : 1400RPM

10. Maximum pull:1100N

11. Maximum load:800KG

12. Net weight:11KG

13.Remote control distance : 50meter

14.Packing : In a carton

Functions of sliding gate motors:

1. Totally integrated electrical mechanical system (Quantity of racks optional ).

2. Control board interface for optional impact-proof infrared photocells.

3. Can connect flashing light and keypad and electric lock and so on.

4. Automatic delayed closing.

5. Adjustable resistance sensitivity.

6. Auto gate stop and re-open when an obstacle is encountered.

7. Wireless remote control or wired remote control are optional.

8. 24VDC sliding gate opener can connect transformer and back up battery.
