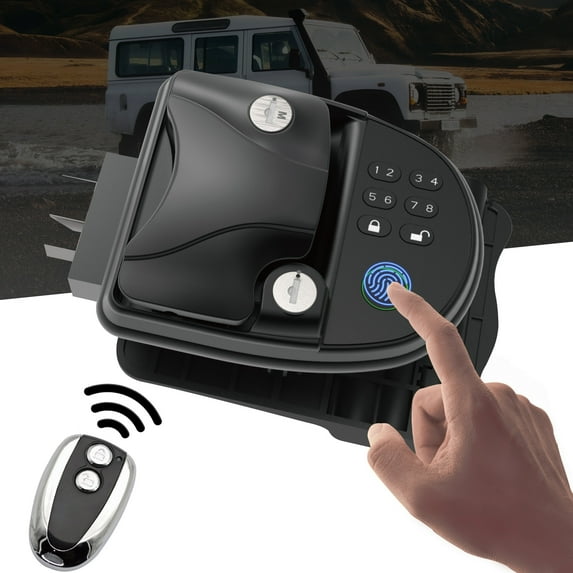

RV Keyless Entry Door Lock With Handle Waterproof Lock Latch Handle Latch With Deadbolt Remote Controller Keyless RV ,Simple to Install

RV Keyless Entry Door Lock with Handle Waterproof Lock Latch Handle Latch with Deadbolt Remote Controller Keyless RV

About item:

3-IN-1 FLEXIBILITY UNLOCK: RV Keyless Entry Door Lock was designed allows you with 3 locking / unlocking options, You can choose to use the unlocking(No need to worry about fortting the password or revealing the password);2Pcs wire less r e m o t e c o n t r o l l e r (Up to 20m distance), or the keyless to lock or unlock the handle, widely used for RV, Bus, Yacht, Ferry, Trunk, Travel Trailer, Bumper Pull and Campers.

Advanced RV Door Lock: The RV entry door lock with highly accurate 360-degree recognition and store up to 100 s groups, tap the recognition area to unlock more easy and safer than other RV Entry door lock.

Easy Program of RV Lock Recognization: RV trailer lock of all hardware and clear and detailed instructions included, it only takes 10-15mins to install.Please Press the "FOB Learn" button , At the same time, place your finr on the sensor.When sensor light is on and lift the finr,repeated Three times until a long beep is heard, that means matched successfully and the sensor showing Green Light.

How to Program the Controller? Standard Fitments: Turn the switch to "ON" at the back

1. Securely latch your RV door in the open position.

2. Remove the 4 screws from the back of the existing handle(see Fig.1).

3. Remove the 2 screws and the strike plate from the side of the door (Fig.2)-you will now be able to remove the front portion of the handle (Fig.3).

- At this point you are ready to install and program your new RV Door keyless Handle Lock.

Installing the new Keyless Handle

1. Carefully remove your new RV Lock from its packaging and place all the parts on a flat,non-abrasive surface.

2. Remove the 2 screws holding the battery cover and install the 4 AA alkaline batteries . (please consult the instructions section for installing the batteries on Pag 5).

3. Slide the Front Handle of your new RV Door Lock into the opening on the front of the door (Fig.4),while carefully pulling the wires ahead of the lock and through the opening(Fig.5).

Then,hold the front handle in place so that it does not fall and attach the new strike plate with the 2 shorter screws on the door jamb side (Fig.6).

4. While holding the RV Door Lock' s Back Handle , connect the battery wires to the Front Handle that is already in the door (Fig.7). A confirmation beep signifies that the connection is made.

NOTE:"ON/OFF" switch does NOT have to be in the ON position (This switch only turns on the ability to use the FOB/remote).

5. Carefully align and attach the back handle while ntly tucking excess wires into the void area. Hold the paddle of the Back Handle closed while inserting the paddle tooth into the Front Handle housing .

NOTE: Make sure not to pinch or cut wires during installation.

6. Use a #2 Phillips screwdriver to install the 4 lonr screws. For the moment,only tighten the screws tight enough to keep the lock securely against the door (Fig.8).

7. Adjust and straighten the Front Handle in the opending.Once straight,hold it in place while fully tighten the 4 lonr screws of the Back Handle (be careful not to overtighten).

8. Type in the numeric code (default code is:"1234") and press the"LOCK"button . Your Handle should now be functioning correctly.

-If the keypad does not function correctly,press the"code reset" button (Fig9) on the Back Handle until you hear a long beep (approx. 5seconds). This will reset your keypad code to"1234".
