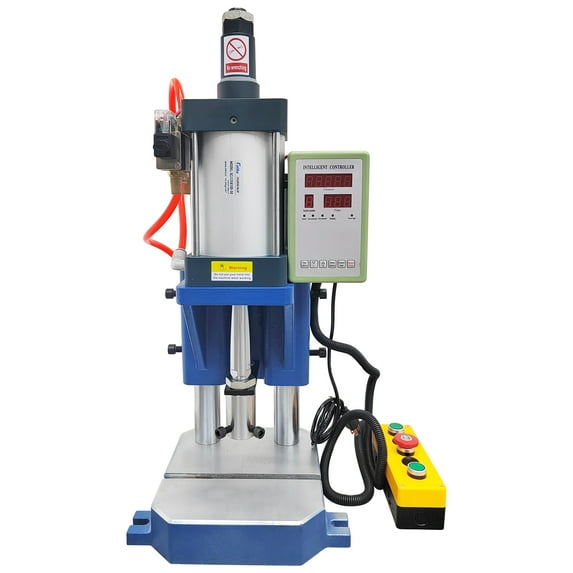

Pneumatic Punch Press Machine Dual Column Structure with Microcomputer Control

Introduction:
The pneumatic press utilizes high-pressure gas generated by the compressor, which is delivered through an air hose to a solenoid valve. The operation of the solenoid valve is controlled via a switch, regulating the working state of the cylinder to complete the pressing operation.

Range of application:
Suitable for electronics, electrical appliances, instruments, meters, cameras, watches, jewelry, hardware and garment, shoes and hats.

Specification:
Voltage: 110V
Pressure: 1763lb/800kg
The die hole diameter: 0.98inch/25mm
Working Countertops Size: 9.4*10.2inch/240*260mm
Outer diameter of trachea: 0.47inch/12mm
Booster cylinder specification: 3.94inch-1.96inch/100mm-50mm
Working air pressure: 0.6-0.8MPa
Max working height: 11.8inch/300mm
Material: Cast iron

Note:
1. Please check that the air hose is properly connected to prevent air leakage, which may cause machine malfunction.
2. Do not place hands under the punching shaft during operation to avoid accidents.
3. Never wipe the machine with a wet cloth, as this may cause rust.
4. This air compressor has a rated pressure of 0.8 MPa. The capacity of its air compressor storage tank is approximately 60 liters - a larger capacity enables longer operation and greater stability. Displacement options include 200 L/min;higher displacement rates support larger machine models.
5. Note: The actual output pressure is approximately 80% of the theoretical pressure.

Item Number:
1763lb/800kg Pneumatic Punch Press Machine 230568
