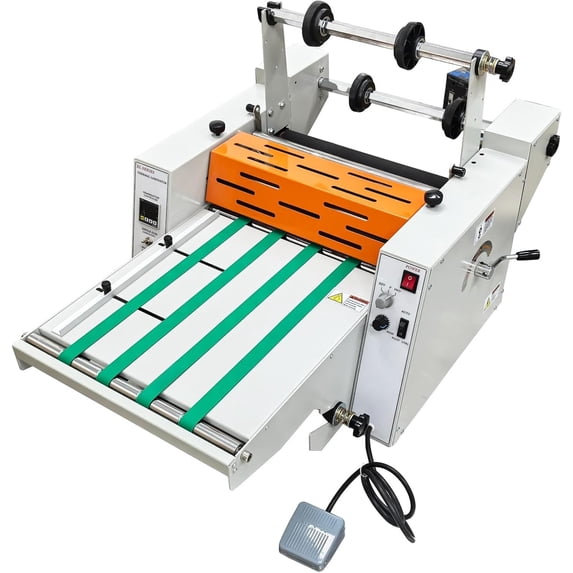

13'' Electric Steel Roller Thermal Laminator Laminating Machine
Key item features
- The electric laminator adopts an upgraded steel roller to conduct efficient cold and heat laminating processes. The steel roller has the high stability, is resistant to deformation at the high temperature and pressure and can effectively remove the bubbles and wrinkles for the laminated materials. The pressure between rollers can be adjusted by the black knob to adapt to different materials to be laminated, so the practicability is greatly enhanced.
- The protective cover is of a hollowed structure and can safely protect the steel roller against damage while preventing the operator against scalds and accidents. Moreover, due to the hollowed structure, the operator can easily observe the roller state while effective heat dissipation is achieved. The steel roller can be lifted or pressed by the handle effortlessly, so the roller is further protected during use and after use.
- The temperature controller can achieve accurate control and adjustment of the laminating temperature to meet different laminating requirements. The actual temperature and set value can be clearly displayed through the digital panel. The operator can choose the single-side laminating mode or the double-sided laminating mode freely as needed, so the high adaptability and practicability are effectively ensured.
-
The laminating speed, automatic/foot pedal control mode and rotating direction can be adjusted and controlled accurately through the corresponding switches, so the laminating operation for different materials is smoothly conducted, and different requirements for speed, mode and direction can be well met. The durable foot pedal is designed for manual control over laminating operation, and operation is easy and convenient. -
The laminator is additionally equipped with a finished product winding mechanism which can wind and collect the finished product orderly and neatly. The finished products can be prevented from scattering and deformation, the product quality can be well guaranteed, the tension can be controlled to be uniform, the occupied space is effectively reduced, the field management is improved, and the subsequent processing can be convenient.
Specs
- Maximum lamination width13.78 in
- Laminator typeLaminator
- BrandTechtongda
- Power typeCorded Electric
- ColorWhite
- Assembled product height22.05"
- Free shipping
Free 30-day returns
(Only one option can be selected at a time)
How do you want your item?
About this item
Product details
Product Overview:
The electric steel roller laminator is a special laminating machine for single-sided and double-sided laminating operation and is suitable for the industries of printing, packaging, manufacturing and so on. The laminator adopts the upgraded steel roller structure to ensure the high temperature resistance, high thermal conductivity, high hardness and high durability, and the service life is longer. The laminating machine is additionally equipped with a conveyor belt mechanism and a winding mechanism, making material feeding and discharging collection stable and orderly. The steel roller laminator is an ideal choice for customers with different laminating requirements.
Product Parameters:
Maximum laminating width : 350mm (13.78in)
Laminating speed: 5m/min
Laminating temperatur: 70-130˚C
Power supply: AC110V 50/60Hz 18A
Heating power : Single side 850W / Double side 1800W
Heating mode : Steel roller internal heating
Laminating mode : Single-sided or double-sided laminating
Operation mode : Automatic mode or foot switch control
Paper feeding mode : Conveyor belt
Paper discharging mode : Winding collection
Product size : 60x89x56cm (23.62x35.04x22.05 inches)
Net weight : 52kg (114.64LBS)
Attention
1. Always handle the laminator with care. Keep hands, long hair, loose clothing and other articles away from the rollers to avoid entanglement.
2. The temperature of the heat rollers can reach 130℃. Avoid touching the heat rollers during operation or shortly after power has been removed from the laminator.
3. Ensure the local power supply is consistent to the power supply indicated on the nameplate of the product.
4. When the machine is not in use, the upper roller should always be lifted and in the ‘Open’ position to prevent the bottom roller from deformation and damage.
Item included(120121):
Electric Steel Roller Thermal Laminator 13'' 110V
- The electric laminator adopts an upgraded steel roller to conduct efficient cold and heat laminating processes. The steel roller has the high stability, is resistant to deformation at the high temperature and pressure and can effectively remove the bubbles and wrinkles for the laminated materials. The pressure between rollers can be adjusted by the black knob to adapt to different materials to be laminated, so the practicability is greatly enhanced.
- The protective cover is of a hollowed structure and can safely protect the steel roller against damage while preventing the operator against scalds and accidents. Moreover, due to the hollowed structure, the operator can easily observe the roller state while effective heat dissipation is achieved. The steel roller can be lifted or pressed by the handle effortlessly, so the roller is further protected during use and after use.
- The temperature controller can achieve accurate control and adjustment of the laminating temperature to meet different laminating requirements. The actual temperature and set value can be clearly displayed through the digital panel. The operator can choose the single-side laminating mode or the double-sided laminating mode freely as needed, so the high adaptability and practicability are effectively ensured.
-
The laminating speed, automatic/foot pedal control mode and rotating direction can be adjusted and controlled accurately through the corresponding switches, so the laminating operation for different materials is smoothly conducted, and different requirements for speed, mode and direction can be well met. The durable foot pedal is designed for manual control over laminating operation, and operation is easy and convenient. -
The laminator is additionally equipped with a finished product winding mechanism which can wind and collect the finished product orderly and neatly. The finished products can be prevented from scattering and deformation, the product quality can be well guaranteed, the tension can be controlled to be uniform, the occupied space is effectively reduced, the field management is improved, and the subsequent processing can be convenient.
