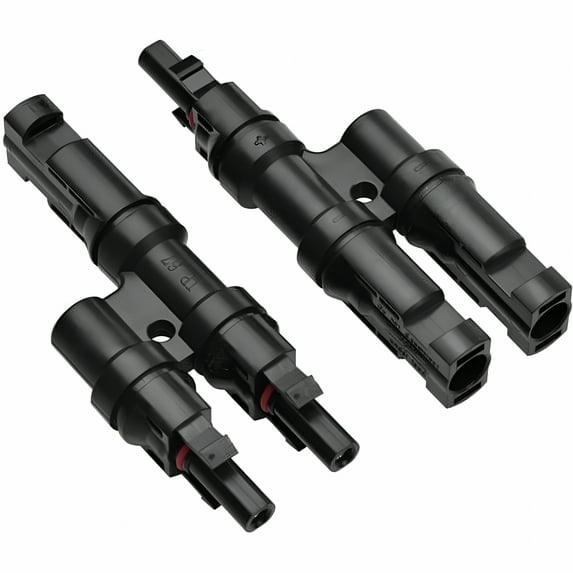

ACDANC T-shaped Photovoltaic Connector Solar Cable Connector Fireproof, Waterproof and Dustproof Black, MC4 2 to 1

T-shaped Photovoltaic Connector Solar Cable Connector Fireproof, Waterproof and Dustproof Black, MC4 2 to 1
T-shaped Photovoltaic Connector Solar Cable Connector Fireproof, Waterproof and Dustproof Black, MC4 2 to 1
Branch solar connectors are designed for parallel connection between solar panels. It adopts high-quality material, features low contact resistance, resistance to water, dust, aging, high and low temperature, etc., suitable for long-term outdoor use.

Features:
Adopts PPO and PC insulation material and tin-plated brass conductor, anti-aging and durable to use. Easy to use and quick to install, no tools required. Innovative sealing, IP67 waterproof and dustproof design. Large current and high voltage carrying capacity. Good impact resistance and low contact resistance.
High and low temperature resistance, UV resistance and other properties, suitable for long-term outdoor use.
Applicable to cables in the 14AWG-10AWG range (2.5mm²-6.0mm²), designed for parallel connection between solar panels.

Note:
Size and color may be slightly different due to manual measurement and different lighting conditions. Thank you for your understanding.

Features:
Type: 5 way/4 way/3 way/2 way (optional)
Color: Black
Material: PPO + PC + Tin-plated brass
Applicable cable: 14-10 AWG (2.5-6.0 mm²)
Rated voltage: 1000 V
Rated current: 30 A
Contact resistance: ≤5mΩ
IP Rating: IP67
Operating Temperature: -40~85℃
Flame Rating: UL94-V0
Safety Class: Ⅱ
Removal Force: ≥50N
Insertion force: ≤50N
Package size:
5 ways: 20 * 13 * 2 cm / 7.87 * 5.12 * 0.79 inch
4 ways: 19 * 12 * 2 cm / 7.48 * 4.72 * 0.79 inch
3 way: 16 * 11 * 2 cm / 6.30 * 4.33 * 0.79 inch
2 way: 15 * 8 * 2 cm / 5.91 * 3.15 * 0.79 inch
Package weight:
5 way: 234 g / 8.26 oz
4 way: 198 g / 6.96 oz
3 way: 150 g / 5.29 oz
2 way: 109 g / 3.84 oz

Package list:
1 pair of solar connectors
