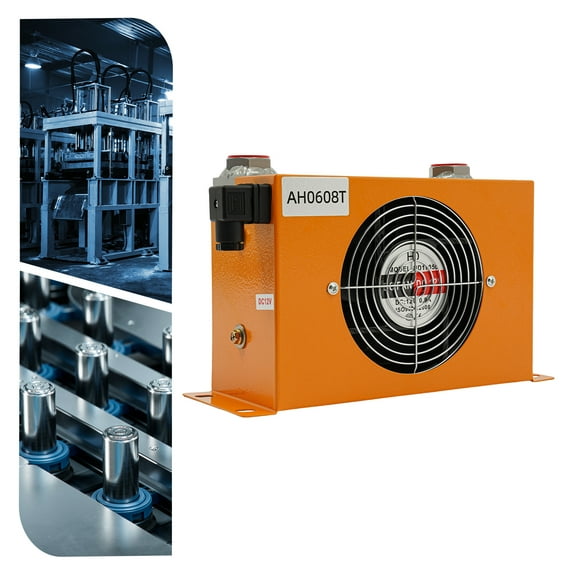

AH0608T-60L-12V 12VDC Hydraulic Oil Cooler 60LPM 38W Air-Cooled Radiator Air Oil Cooling Machine Plate Heat Exchanger Hydronic Radiator with 1.3 Quare Meters Heat Dissipation Plates

Description:

This hydraulic oil cooler stands out with its compact design, which not only demonstrates its excellent heat dissipation but also makes it suitable for a wide range of industrial equipment. With its performance and durability, it is an indispensable option for improving the efficiency of your production equipment, as it will maintain stable behaviour in extremely harsh environments.

Carefully Engineered Fan: Its 6.69-inch diameter not only significantly boosts cooling speed but also subtly prolongs the device's operational life.

Pre-drilled Holes: This device features four pre-drilled mounting holes, enabling precise and simple installation.

Application:

This product is highly suitable for hydraulic, lubrication, transmission, and marine/vehicle power mechanisms, supporting oil recirculation, discharge cooling, or independent circuits in industrial, automotive, and marine applications.

Specification：

Mount Type: Freestanding

Assembly Required: No

Style: Modern

Shape: Rectangular

Color: Orange

Material: Alloy

Process: Welding

Motor Type: All-Copper Motor

Voltage: DC12V

Flow Rate: 60LPM / 15.85GPM

Working Pressure: ≤2MPa

Fan Power: 38W

External Fin Cooling Area: 1.3m³

Fan Diameter: 170mm/6.69in

Cooling Capacity: 2300Kcal/H

Airflow Rate: 200m³/H

Connection Thread: ZG3/4

Overall Product Length: 32.3cm/12.72in

Product Size: 26*11.5*20cm/10.24*4.53*7.87in

Package Size: 34*23.5*14.7cm/13.39*9.25*5.79in

Gross Weight: 3.8kg/8.38lbs

Net Weight: 3.5kg/7.72lbs

Package Included:

1* Hydraulic Oil Cooler

1* English Manual

Notes:

1. Please check the style and size before purchasing.

2. Please read the instruction manual and labels completely before installation and use, and pay particular attention to the safety instructions included.

Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.
