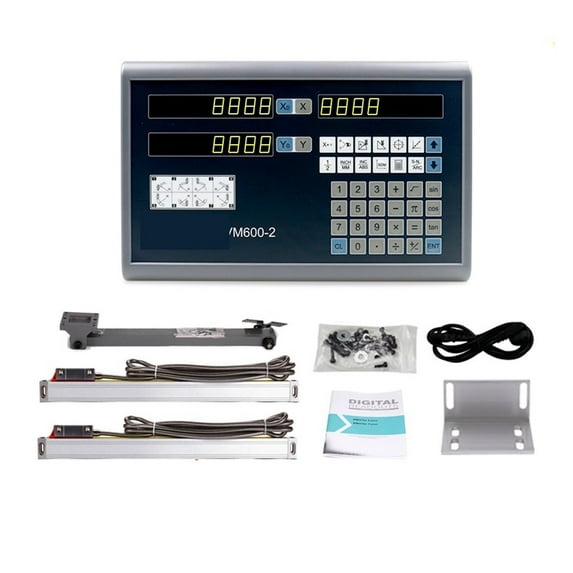

Lathe Dro 2 Axis Digital Readout Display System + 2pcs Linear Encoder Linears Scale Dimensions 200 300 400 500 600 700 800 900mm ,High Accuracy

Complete Machine tool 2 Axis Digital Readout Dro Set/Kit and 2 PCS 5u Linear Glass Scales Linear Optical Ruler for Milling/Lathe

Dro digital readout functions

1:zero clearing

2:reset

3:mm/inch mode

4:ABS/INC coordinate conversion

5: 200sets sub datum

6:power off Memory;

7:center of 1/2

8:liner error compensation

9:sleepping mode

10:Clear 200 sets Sdm datum;

11:ABS/INC mode

12:calculator

13:drilling of circumference

14:drilling of oblique line

15:machining of inclined plane

16:machining of circular arc

18:Rectangular lumen gradual processing

19:digital filtering

20:vibration filtering

21:Radius /Diameter fucntion

22: Lathe function

Dro digital readout display system parameter

1.Voltage Range: AC 80V~250V/50HZ~60HZ

2.Acceptable Signal: TTL

3. : DB9

4.Acceptable resolution: 10um ,5um ,2um ,1um , 0.5um.

5ULinear Scals/Encoder/Sensor Parameters

1. Travel (measuring) length: 0-1000mm / 0-40inch

2. Total (overall) length: Travel length + 140mm (0-1140mm)

3. : DB9

4. Resolution: 0.005mm(5u)

5. Input voltage: 5V

6. Grating pitch: 0.02mm (50LP/min)

7. Cable length: 3 Meter

8. Normal size: About 22*34

The Signal of 5uLinear Optical Ruler/Linear Glass Scales/Linear Encoder/Linear Sensor

Pin 2 Black 0V

Pin 6 Green A

Pin 7 Red 5V

Pin 8 White B

1.Systems increase productivity, save time and provide higher precision by translating the values measured by linear encoders, length gauges, rotary encoders or angle encoders into an easy-to-read format.

2.They can be installed on new equipment or retrofitted to machines already in operation.

3.Systems work with any machine where axis slides are traversed manually.

4.Data interface allows for additional processing or printouts of the measured values (most models).

1.Eliminate machine tool position errors caused by thermal expansion, deformation of the drive mechanics, pitch issues and more.

2.High long-term speed stability.

3.Sturdy construction and high resistance to vibration.

4.Finer signal periods offer highest interpolation accuracy.

5.Compact, lightweight and easy to install.

6. and dependable

7.Sealed or enclosed linear designs available.
