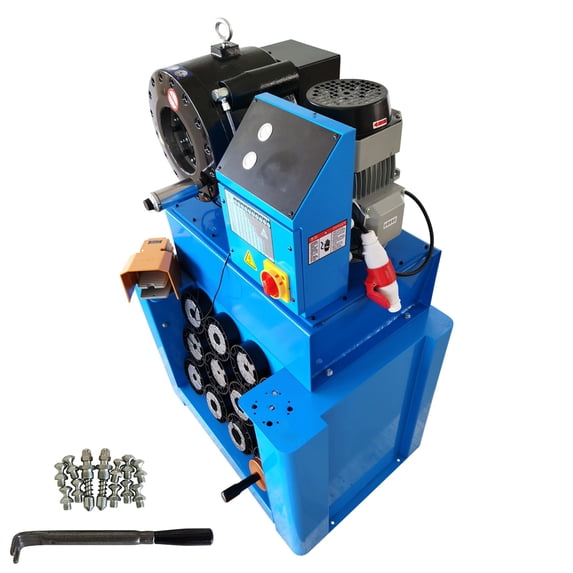

0.55"-2.72" Round Pipe Shrinking Rubber Hose Pressing Crimping Machine 220V

Introduction:
The clamping machine is a kind of hydraulic equipment used for clamping pipe assembly, the supporting metal joint through the clamping machine mold to exert shrinkage force, the metal joint firmly clamping in the supporting construction machinery with high pressure oil pipe or car brake pipe, oil pipe, air conditioning pipe, power pipe. It is suitable for all kinds of mechanical high and low pressure oil pipe, gas pipe, water pipe, cable joint, automobile air conditioning pipe, automobile power steering pipe, oil pipe, gasoline supply oil pipe, as well as construction accessories, daily hot water pipe, widely used in vehicles, construction machinery, hydraulic machinery, welding and cutting equipment and other industries.

Parameters:
Voltage: AC220V
Motor Power: 5.4HP(4KW)
Phase Number: Three
Crimp Range: 0.55"-2.72"(14MM-69MM)
Max Crimping Range: 0.12"-3.42"(3MM-87MM)[Need Custom Dies]
Max Opening Without Dies: 5.51"(140MM)
Crimp Force: 5390KN(550T)
Crimping Completion Time: 1S-9S
Dies Quantity: 13Sets(14/16/19/22/26/30/34/39/45/51/57/63/69MM)
System Pressure: 31.5MPA
Hydraulic Oil Tank Capacity: 12.68Gal(48L)
Noise: 75DB
Package Size: 27.6"*26.4"*46.5"(70CM*67CM*118CM)
Net Weight/Gross Weight: 632.7LB(287KG)/698.9LB(317KG)

Items Included: 056824-EnzS
220V 0.55"-2.72" Hose Crimper High Pressure Hydraulic Hose Crimping Machine with 13 sets of Dies Tube Shrinking Machine
Crimping Machine*1
Dies*13
Die Screw*10
Fixed Die Screw*2
Die Handle*1
Die Hook*1
Foot Switch*1
English Manual*1
