175PSI 10HP 7.5KW W Style 3-Cylinder Air Compressor Pump Motor Head Double Stage

Description:

The pump head of this air compressor is made of aluminum cylinder head, which can supply air faster, dissipate heat quickly, not easy to damage, compact structure and lower noise. It has the characteristics of high efficiency, high precision, low energy consumption and strong versatility.

Specifications:

Model: W-0.9/12.5

Power: 7.5KW

Main wheel：350 mm

Pipe interface：M33*1.5 mm

Cylinder diameter：90 * 2 + 65*1 mm

Compression level: secondary compression

Maximum pressure: 175psi 10HP

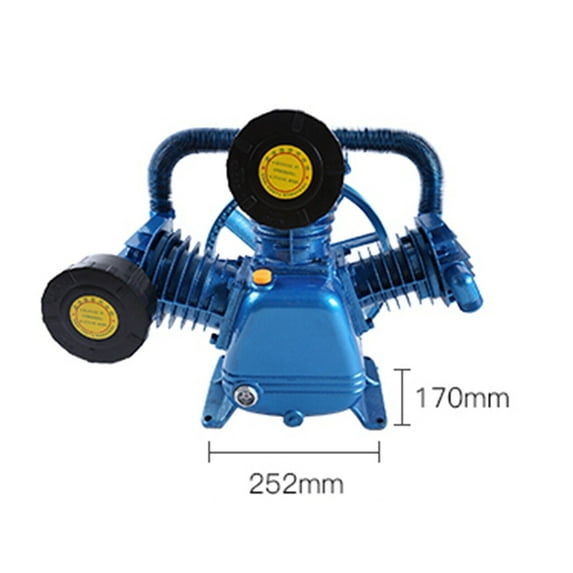

Installation hole distance: 252 * 170mm

Material: Cast Iron

Package size: 56 * 36 * 45 cm

Net weight: 33kg

Driving mode: Pneumatic

Packing List:

1 x Air Compressor Pump Head

Attention:

First, it should match the motor power

Second, the head and motor pulley must be kept in a straight line to avoid bearing displacement

Third, before using a new machine, you must add oil first. Change the oil for half a month for the first time, one and a half months for the second time, and change the oil for the next four to five months. Pay attention to observation at ordinary times. If it is not enough, replenish it in time. Keep the oil level in the middle of the red spot of the oil mirror

Fourth, the pump head will produce high temperature in the process of operation, do not touch
