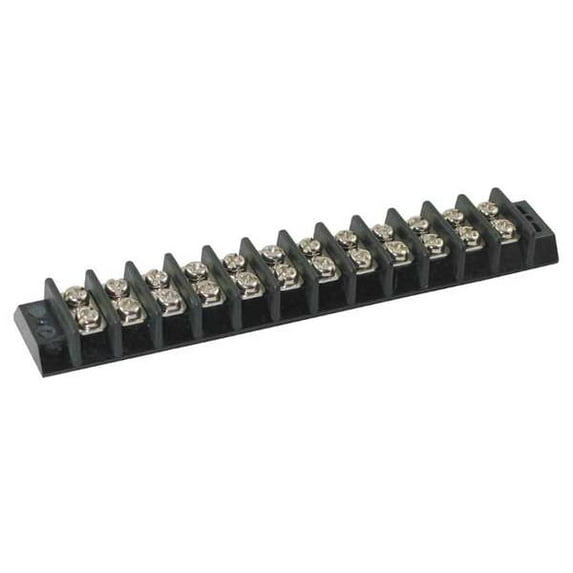

Terminal Strip, 12 Pole, 2 Row, 15 A, 300 V AC, 14 AWG, Screw Termination
Zoro Select

Terminal Strip, 12 Pole, 2 Row, 15 A, 300 V AC, 14 AWG, Screw Termination

(No ratings yet)

Key item features

  • Amps:15 A
  • Center Spacing:3/8 in
  • Color:Black
  • Compatible with Product Type:Power Distribution Blocks
  • Cover Included:No
  • Current:15 A
  • For Maximum Wire Size:14 AWG
  • For Minimum Wire Size:22 AWG
  • Height:0.47 in
  • Housing Color:Black
  • Housing Material:Phenolic
  • Item:Terminal Strip
  • Length (Straight Wireway):5.2 in
  • Length:5.2 in
  • Material:Phenolic
  • Max. Wire Size:14 AWG
  • Maximum Operating Temperature:266 Degrees F
  • Maximum Voltage:300 V AC
  • Min. Wire Size:22 AWG
  • Minimum Operating Temperature:-40 Degrees F
  • Mounting Style:Bolt Down
  • Number of Poles:12
  • Number of Rows:2
  • Overall Height:0.45 in
  • Overall Length:5.18 in
  • Overall Width:0.89 in
  • RoHS Compliant:Yes
  • Screw Type:Phil-Slot
  • Standards:cRUus
  • Temp. Range:-40 Degrees to 302 Degrees F
  • Terminal Material:Copper
  • Termination Screw Finish:Nickel Plated
  • Termination Screw Material:Steel
  • Termination Screw Size:#6-32
  • Termination Style:Screw
  • Torque:9 in-lb
  • UL 94 Flammability Rating:V-0
  • Voltage:300V AC
  • Width:0.87 in
