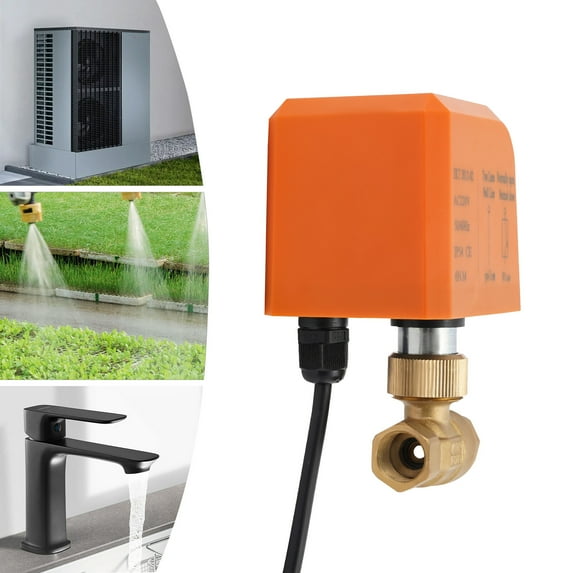

3/8" Motorized Ball Valve N/C, Two-Way, 2-Wire Normally Closed, Brass
Key item features
- Long Service Life: Premium quality brass material coupled with excellent process ensures that the product is resistant to abrasion and impact, and the waterproof grade is up to IP 54, which is suitable for various harsh working environments and ensures a long service life.
- Good Sealing Performance: Through precision machining and special sealing design, it ensures a good sealing effect and effectively prevents leakage problems.
- Easy Operation: The electric drive mode makes the opening or closing process simple and fast, allowing you to control and regulate the fluid in the pipe at any time.
- Wide Adaptation Range: It is not only suitable for water treatment, the chemical industry, and other industries, but also widely used in petroleum processing, pharmaceutical, and other fields.
- Humanized Design: A 2-wire actuator is convenient for you to control and wire quickly to meet your actual use requirements. In an N.C. valve, it's closed without power and opens when energized, blocking fluid or gas flow.
- Space Saving: Compact and reasonable structure (1.8*4.8 inches) is easy to install against the wall on-site and in narrow spaces, effectively saving installation space.
- Large Thread Diameter: A 0.6-inch thread diameter provides a 0.4-inch flow-through diameter, effectively speeding up the speed of liquid flow.
- Standard Connection: A G3/8'' standard connection diameter enhances the range of applications and greatly enhances the flexibility and convenience of use.
Specs
Size45*123mm/1.8*4.8 in
MaterialBrass
BrandUnbranded
ColorOrange
- Free shipping
Free 30-day returns
How do you want your item?
About this item
Product details
Made of durable material with a waterproof rating up to IP54, this motorized ball valve is mainly used to cut off or connect the medium in the pipeline, as well as for the regulation and control of fluids, which is undoubtedly a highly efficient tool for industrial automation process control. It is suitable for air, steam, water, gas, petroleum and petrochemical products, and other media, and is widely used in water treatment, chemical, maintenance, petroleum processing, pharmaceutical, and other fields.
Specification
Mount Type: Freestanding
Assembly Required: Yes
Material: Brass
Voltage: AC 220V 50/60Hz
Color: Orange
Type: Normally Closed, Two-Way, 2-Wire Actuator
Control: Electrical
Tube Size: G 3/8''
Thread Diameter: 15.2mm/0.6in
Flow Through Diameter: 10mm/0.4 in
Product Size (W*L): 45*123mm/1.8*4.8 in
Package Size: 15*10.5*8cm/5.91*4.13*3.15in
Gross Weight: 1.4kg/3.09lbs
Net Weight: 1.33kg/2.93lbs
Package Included
1* Motorized Ball Valve
1* Threaded Port
1* English Manual
Notes
Please check the style and size before purchasing.
Please read the instruction manual and labels completely before installation and use, and pay particular attention to the safety instructions included.
Please note that the valve should be used under the allowable nominal pressure, working pressure, working temperature, and medium. Please note that the installation structure and specification size of the valve must be consistent with the installation structure of the pipeline.
Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.
