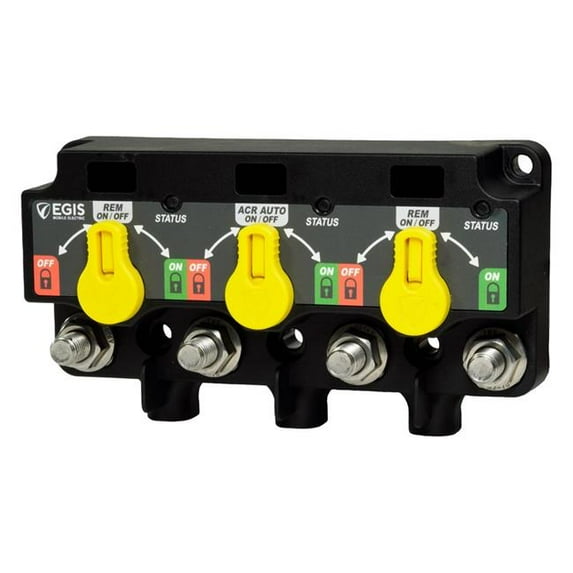

Egis EGIS-8730-1939 Mobile Electric XD Series Triple Flex 2 Breaker with Tinned Wires

A compact and waterproof product that works in both 12V and 24V systems via automatic detection.

• The battery isolator is also equipped with a lever for manual switching on and off
• 500A continuous current rating
• 12V and 24V (automatic detection)
• Combined battery isolator/ACR isolator relay and two manual main power switches
• Remote control via plus signal for switching the ACR on and off
• Manual lever for on and off activation
• Status display with unit LED and external LED
• Programmable in several different stages off and on Low power consumption, 1.3 mA
• Mech Switch/ACR with Knob/Mech Switch

• Voltage: 12/24V DC
• Voltage Range: 8-36 V
• Consumption on/off (20 msec): 5A
• Standby Consumption: 1.3 mA
• Continuous Load: 500A
• Instantaneous Max. Load: 700A 5min
• Starting Current: 1600A 30sec
• Connection: M10
• Water Resistance: IP67/IP6K9K
• Operating Temperature: -40 till 105 C
• Connects: 12.7 / 25.4 V
• Disconnects: 13.1 / 26.2 V
